IS200JPDSG1A GE Power Distribution Board Mark VI IS200 Controller Module

IS200JPDSG1A GE Power Distribution Board Mark VI IS200 Controller Module

Product Details:

Additional Information:

Description:

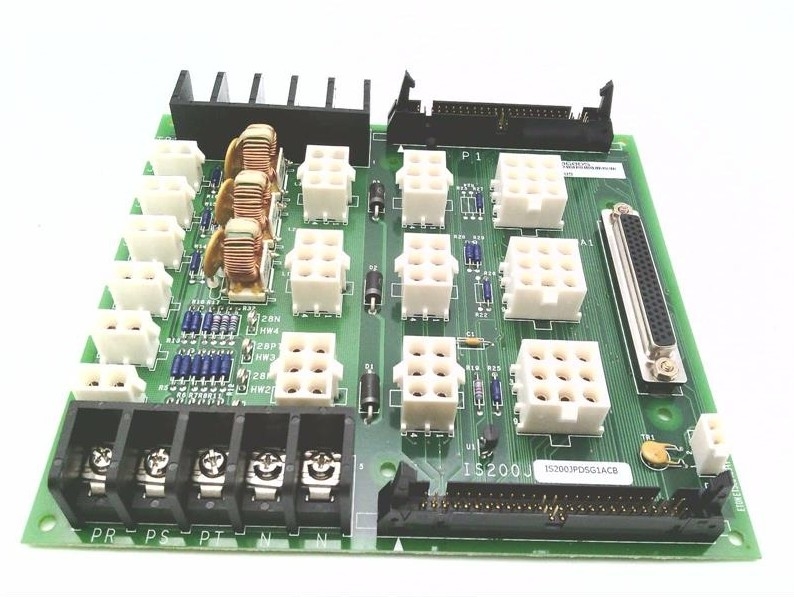

The IS200JPDSG1A board is designed to be installed conveniently in a metal holder that fits onto a vertical DIN-rail, typically positioned alongside other power distribution boards. Optionally, the JPDS is also available with a specific metal holder tailored for direct mounting. The IS200JPDSG1A is a 28 V Power Distribution Board manufactured and designed by General Electric. It is a part of the Mark VIe Series used in distributed control systems. The 28 V Power Distribution (JPDS) board provides the control system with 28 V dc input power from external ac/dc or dc/dc converters. JPDS incorporates feedback from the PPDA I/O pack into the PDM system. The power distribution board, or JPDS, is what transfers 28 V dc power from the chosen power sources to the JPDP boards (for powering the I/O packs) and control racks. JR, JS, and JT connectors are used to provide the conventional 28 V power input to JPDS.

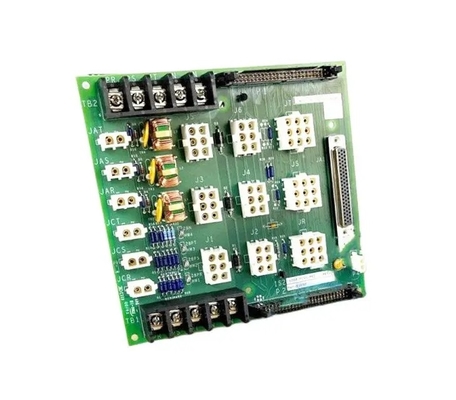

The IS200JPDSG1A is built with three inductor coils, four varistors, four TP test points, two transistors, and multiple resistors and capacitors. Each of the TP test points has a series 10k resistor that is isolating the ring. The board is designed for DIN-rail mounting and can be mounted next to other power distribution boards. The IS200JPDSG1A is drilled in six locations. GEI-100613, published by GE, will provide more information on the operation, wiring, and installation of this board.

Direct Current Distribution Board IS200JPDSG1AEC is a board that will receive twenty-eight volts of direct current. The power supply is typically received from an external alternating current/direct current or direct current/direct current converters. This model is similar to the JPDM module. However, this model has more components than the JPDM module does which includes more branch circuit fuses and output connectors. Thanks to the two ribbon cable connectors on this module it also has the potential to host a PPDA I/O pack. Same as the JPDM module the JPDS module will be mounted in a power distributor module.

The IS200JPDSG1AEC board has specific characteristics, some of which are a DC62 connector that can host the PPDA, three outputs labeled JAS, JAT, and JAR which are used for auxiliary power connectors, and more. IS200JPDSG1A is part of GE Mark VI module. It is a Power Distribution Accessories card, which is used for Power Distribution system feedback I/O pack IS220PPDAH1A. IS200JPDSG1A has 15 different plug connectors and branch circuit fuses and output connectors. The GE IS200JPDSG1A is a cutting-edge power distribution card designed for seamless integration into industrial control systems, ensuring optimal power management and system reliability.
