IS200TBAIH1C GE Analog Input Terminal Board Mark VI Bridge Interface Board

IS200TBAIH1C GE Analog Input Terminal Board Mark VI Bridge Interface Board

Product Details:

Description:

IS200TBAIH1C is an Analog Input Terminal Board manufactured and designed by General Electric as part of the Mark VI Series used in gas turbine control systems. Two outputs and 10 analog inputs are supported by the Analog Input terminal board. Two-wire, three-wire, four-wire, or transmitters that are powered externally can all be plugged into one of the ten analog inputs. A current of 0-20 mA or 0-200 mA can be configured for the analog outputs. Surge and high frequency noise are protected from by noise suppression circuitry in the inputs and outputs.

For connecting to the I/O processors, the TBAI has three DC-37 pin connectors available. It is possible to connect using TMR with all three connectors or simplex on one connector (JR1). Both direct connections to the electronics and cable connections are possible. To the three connectors for the R, S, and T controls in TMR applications, the input signals are fanning outward. Utilizing a measuring shunt on the TBAI, the total current of the three output drivers that are connected is combined to run TMR outputs. Following that, the electronics are given the total current signal by the TBAI so they can regulate it to the specified set point.

• A two-wire transmitter with an analog input
• Three-wire transmitter with analog input
• A four-wire transmitter with an analog input
• A transmitter with an analog input and external power
• Analog input, 5 and 10 volts direct current
• 0-20 mA analog output
• 0-200 mA analog output

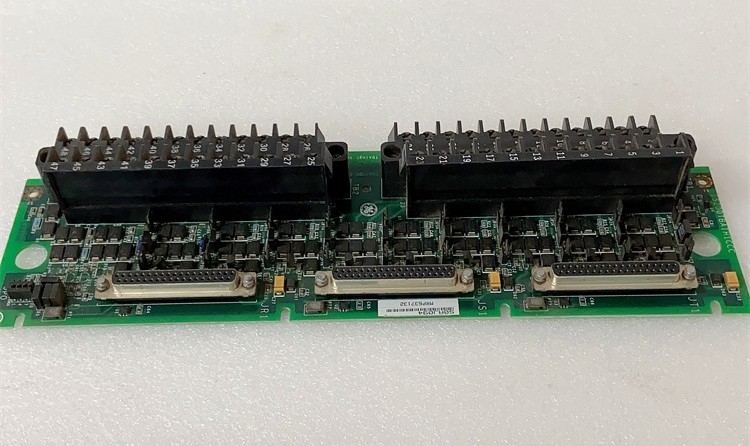

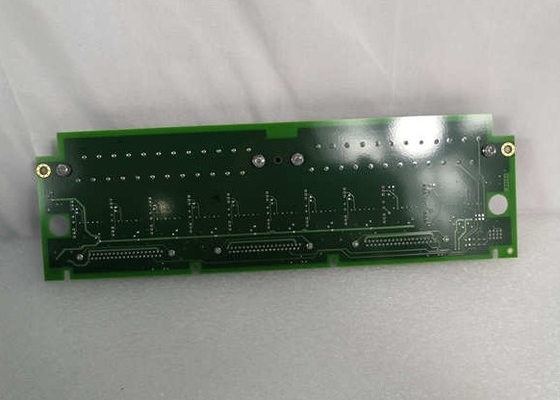

The IS200TBAIH1C is device known as an analog terminal board. This PCB or printed circuit board is a part of the Mark VI series by General Electric. Mark VI and the other series in the Mark lineup by General Electric were created to control and automate the processes of gas and steam turbines. The IS200TBAIH1C printed circuit board is a very long and slim device. The left half of the IS200TBAIH1C is occupied by two black terminal blocks. Each terminal block may contain up to twenty-four terminals which are cube shaped and made from silver metal.
