IS200VTURH2B GE Primary Turbine Protection Board Mark VI Controller Module

IS200VTURH2B GE Primary Turbine Protection Board Mark VI Controller Module

Product Details:

Description:

IS200VTURH2B is a VME Turbine Card and is also known as the Primary Turbine Protection board under General Electric Speedtronic Mark VI series. The component performs several tasks, including monitoring shaft and voltage currents, as well as monitoring Geiger-Mueller flame detectors in gas turbine applications. To keep these processes running, the board monitors four-speed inputs from passive magnetic sensors. Flame detectors can help evaluate if the system's light detection is being hampered by carbon buildup or other impurities. In turbines without a mechanical Overspeed bolt, this PCB can also send a trip command.

The GE IS200VTURH2B is a specialized printed circuit board meticulously designed for turbine speed control applications within industrial settings. Its robust design ensures consistent performance even under demanding conditions. This module features cutting-edge technology for precise control, making it ideal for critical operations where reliability and accuracy are paramount. It seamlessly integrates into existing systems, enhancing overall efficiency and performance. Constructed with high-quality materials, the IS200VTURH2B is built to withstand harsh industrial environments. Its compact dimensions make it easy to install and maintain within control panels and systems. The GE IS200VTURH2B supports a wide range of industrial automation needs, providing real-time monitoring and control capabilities for turbines. This makes it an essential component for power generation plants, refineries, and other large-scale industrial facilities.

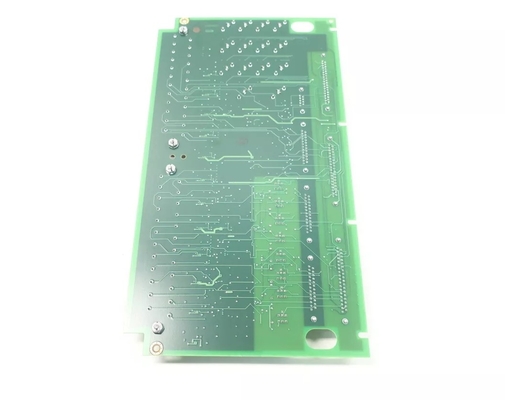

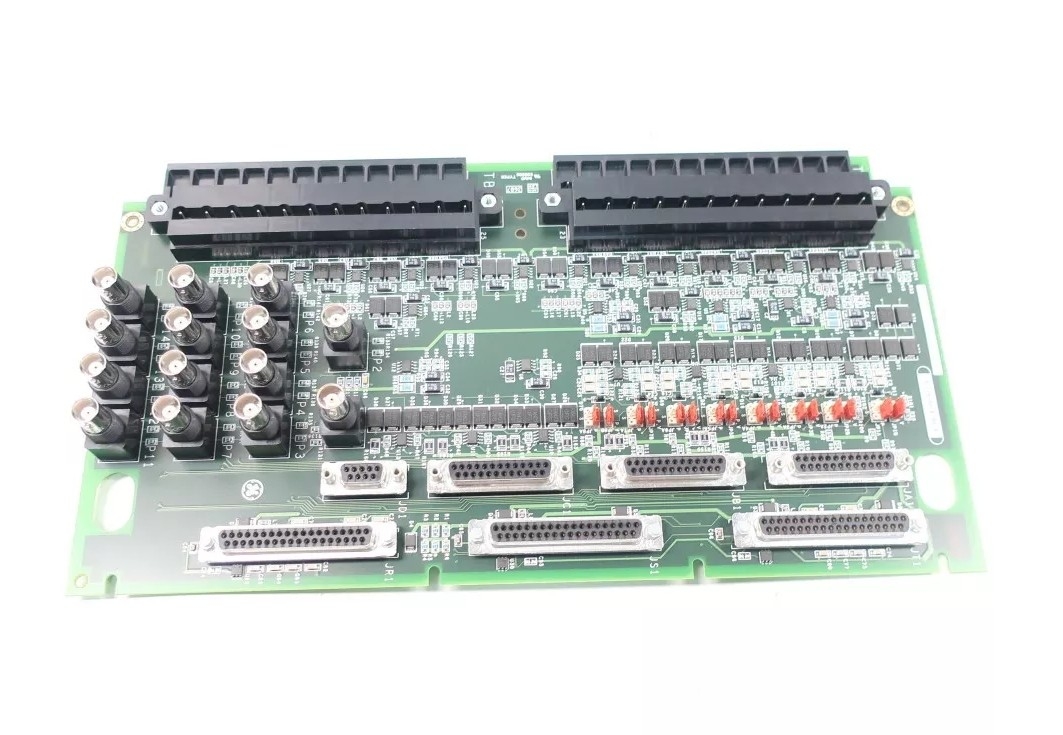

The IS200VTURH2B has two backplane connectors plus other connectors. It has thirteen transistors, inductor coils, as well as resistors and capacitors on both the front and back of the board.The board includes an auxiliary board attached via four standoffs that has an additional backplane. IS200VTURH2B is a VME turbine board, also known as the main turbine protection board under the General Electric Speedtronic Mark VI series. This component performs multiple tasks, including monitoring the shaft and voltage current, as well as monitoring the Geiger Miller flame detector in gas turbine applications. To maintain the operation of these processes, the board monitors four speed inputs from passive magnetic sensors. Flame detectors can help evaluate whether the system's light detection is hindered by carbon accumulation or other impurities. In turbines without mechanical overspeed bolts, this PCB can also send trip commands.
