IS200SCNVG1A GE Signal Conditioning And Networking Card Bridge Control Board

IS200SCNVG1A GE Signal Conditioning And Networking Card Bridge Control Board

Product Details:

Additional Information:

Description:

The IS200SCNVG1A is what is known as an SCR diode bridge control board. This part is used as a control for the bridge interface board, which is made for the innovative series of SCR diode converters. The IS200SCNVG1A is a printed circuit board or PCB, created by General Electric or GE as part of the Mark VI series. The Mark VI is a series within the larger Mark series, designed to control processes in gas/steam turbines.

IS200SCNVG1A is a Signal Conditioning and Networking Card manufactured and designed by General Electric as part of the Mark VI Series used in GE Speedtronic Turbine Control Systems. This card is engineered to ensure precise signal processing and effective communication across the control system. It functions by conditioning signals from various sensors, and converting raw data into standardized formats that are essential for accurate monitoring and control. By filtering out noise and enhancing signal integrity, the card significantly improves the quality of data that reaches the control system. It supports various communication protocols, ensuring compatibility and integration with diverse components of the turbine control architecture.

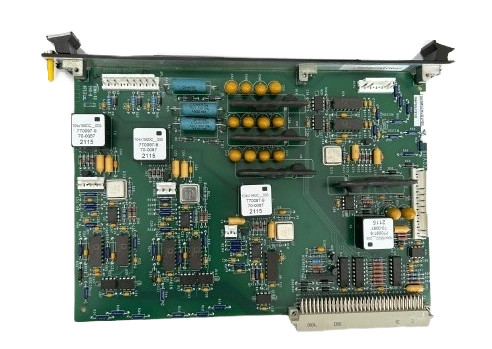

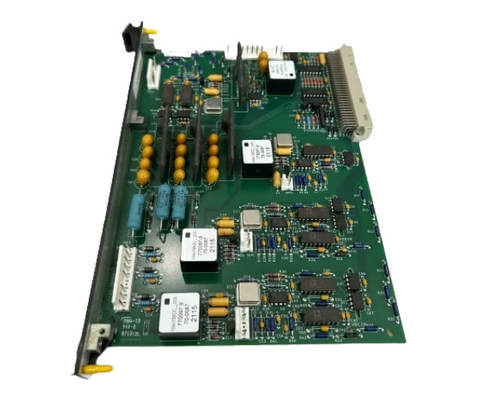

The IS200SCNVG1A is a large rectangular circuit board. Sitting along the right edge of the PCB is a long metal part which is the front panel of the board. At the bottom of this panel is the part’ s name SCNVG1A. The IS200SCNVG1A model is a control-to-bridge interface board used with 1800 to 1000-amp stand-alone SCR-Diode Converters in the Innovation Series. It will provide 6-pulse sources which will drive three SCRs per board used. This model is not used for driving the paralleled SCRs from the same board.

This IS200SCNVG1ADC SCR-Diode Converter Interface Board printed circuit board was originally designed and manufactured specifically for placement in the Mark VI Turbine Control System Series, as was revealed originally through the brief IS200SCNVG1ADC SCR-Diode Converter Interface Board product description above.

The IS200SCNVG1A is an SCR diode bridge control board designed and developed by GE. It is a part of Mark VI control system. The SCR Diode Bridge converts alternating current (AC) power from the main power source to direct current (DC). This conversion is essential for supplying stable and controlled power to the different electronic components of the gas turbine control system. The board regulates the voltage output to ensure that it meets the specific requirements of the gas turbine control system. Voltage regulation is critical for the proper functioning of electronic components and devices.
