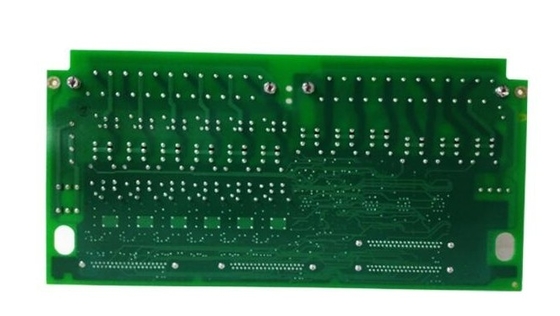

IS200DSPXH2D GE Digital Signal Processor Control Board Mark V Drive Board

IS200DSPXH2D GE Digital Signal Processor Control Board Mark V Drive Board

Product Details:

Additional Information:

Description:

IS200DSPXH2D is a Digital Signal Processor Control Board manufactured and designed by General Electric as part of the EX2100 series used in GE Excitation Control Systems. A Digital Signal Processor Control Board, often abbreviated as a DSP control board, is a hardware component used in various electronic systems to process digital signals. It serves as the central control unit for managing and executing signal processing tasks using a Digital Signal Processor (DSP) chip. It is comprised of a high-performance digital signal processor (DSP), standard memory components, and an application-specific integrated circuit (ASIC) that performs custom logic functions. A CompactPCI (CPCI) enclosure houses the controller. A 6U high rack, one or two 3U high power supplies, a 6U high single board, and a cooling fan are typical components of a CPCI enclosure.

The heart of the board is the DSP chip, which is a specialized microprocessor designed to efficiently handle digital signal processing tasks. DSPs excel at tasks like filtering, modulation, demodulation, and other operations on digital signals. DSP control boards typically feature various input and output interfaces to connect with external devices. These might include analog-to-digital converters (ADCs) for converting analog signals into digital format and digital-to-analog converters (DACs) for the reverse process. IS200DSPXH2D board is very reliable and so less prone to damage. But the improper handling and poor storage can affect the functionality of the card. So that we recommend keeping the cards in static sensitive storage boxes in recommended conditions.

General Electric's Digital Signal Processor Control Board model IS200DSPXH2D is part of the EX2100e series of devices. The inner DSP will run on 60 Mhz. The IS200DSPXH2D has four external interrupts that will be provided to the DSP during regular operation which are an inner loop load pulse, stack overflow, and two configurable inputs.
