IS200DSPXH2C GE Digital Signal Processor Control Board Mark V Industrial Controller

IS200DSPXH2C GE Digital Signal Processor Control Board Mark V Industrial Controller

Product Details:

Description:

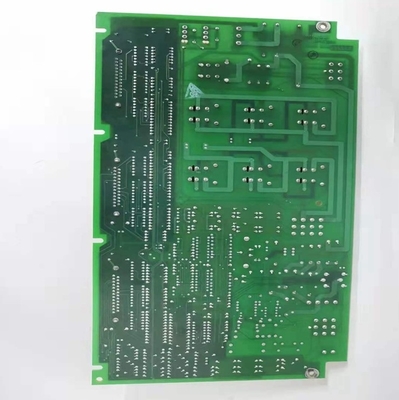

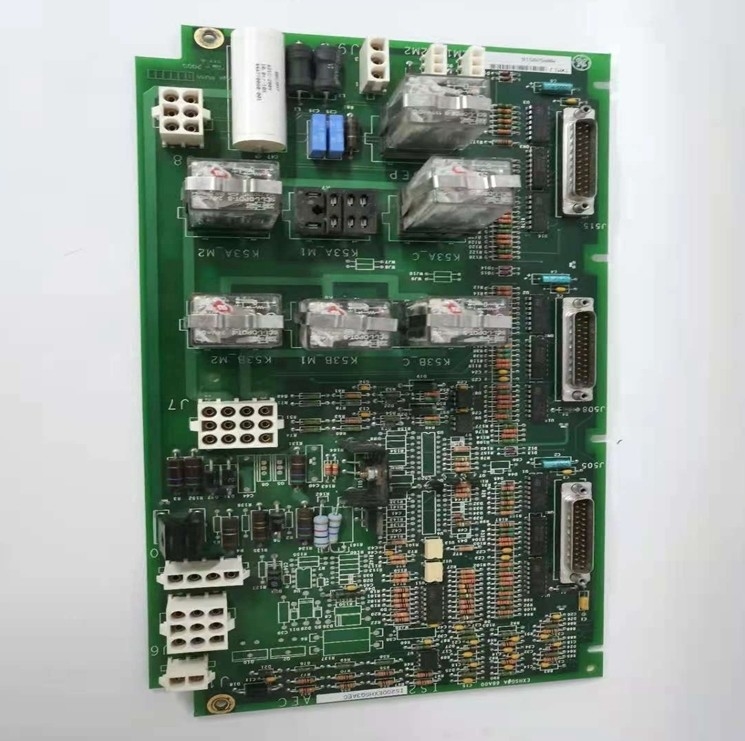

The IS200DSPXH2C is a relatively large printed circuit board. On the left edge of the IS200DSPXH2C is a long metal piece which spans the length of the border. To the right of the IS200DSPXH2C, there is a silver metal component which is shaped like a square. The part number of this capacitor is printed on the top in black writing. The IS200DSPXH2C is what is called a drive DSP control board. This is a form of printed circuit board or PCB created by General Electric for the Mark VI series. The Mark VI is the most recent series in the Mark family of equipment which controls the functions of gas and steam turbines. The IS200DSPXH2CAA is a Digital Signal Processor Control Card. It serves various purposes, including being compatible with Innovation Series drives and controlling generator field control functions for the EX2100 exciters

IS200DSPXH2C is a Digital Signal Processor Control Board manufactured and designed by General Electric as part of the EX2100 Series used in GE Drive Control Systems. The IS200DSPX Digital Signal Processor Control Board (DSPX) is the primary controller for the bridge and motor regulator and gating functions for Innovation Series drives. It also controls generator field control functions for the EX2100e Excitation Control. The board provides logic, processing, and interface functions. The DSPX board includes a high-performance digital signal processor (DSP), standard memory components, and an application-specific integrated circuit (ASIC) that performs custom logic functions. A DSP Control Board is a hardware device containing a Digital Signal Processor (DSP) chip. It is designed to process digital signals in real time for various applications such as audio processing, telecommunications, and control systems.

The IS200DSPXH2C functions as the primary controller for bridge and motor regulation, gating functions in Innovation Series drives, and generator field control for the EX2100e Excitation Control. The DSPX board provides logic, processing, and interface functions, and features a high-performance digital signal processor (DSP), standard memory components, and an application-specific integrated circuit (ASIC) for custom logic functions.

This IS200DSPXH2CAA printed circuit board product offering from esteemed manufacturer General Electric was originally specifically designed for placement in the Mark VI Turbine Control System Series as indicated above in short. This IS200DSPXH2CAA product's Mark VI Series is relatively self-explanatory based off of its full extended Mark product series name at least, as it exists with a set of possible functional applications in the management and control systems of General Electric-compatible gas, steam, and wind turbine automated assemblies.

Additional Information:
