IS200DAMEG1A GE Gate Amplifier Interface Board Mark VI Turbine Protection Board

IS200DAMEG1A GE Gate Amplifier Interface Board Mark VI Turbine Protection Board

Product Details:

Description:

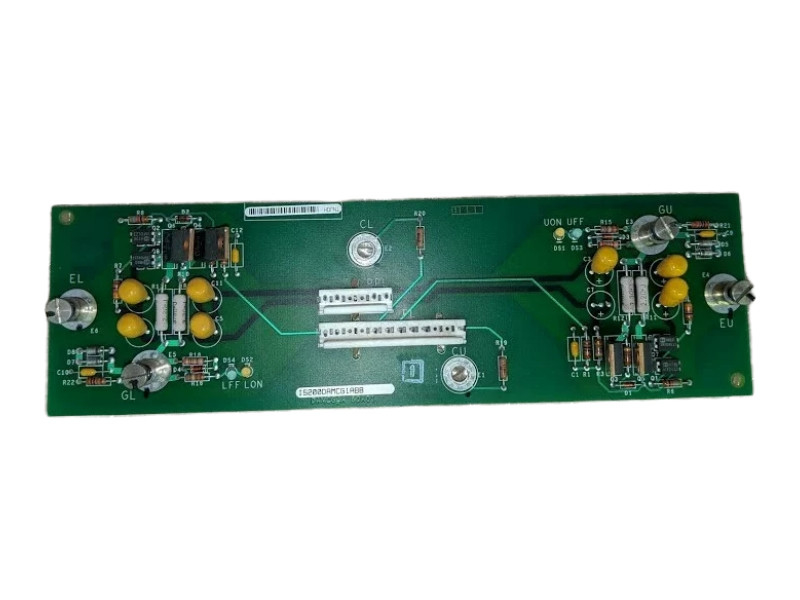

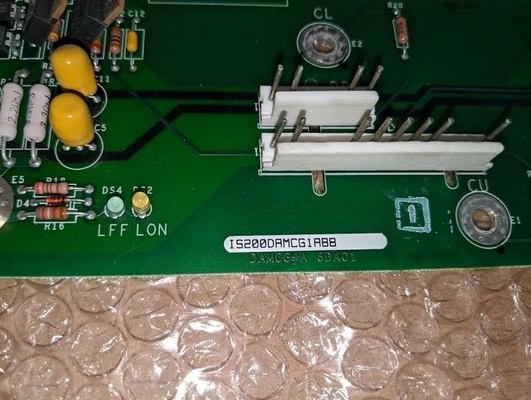

The IS200DAMEG1A is a gate amplifier/interface board developed by General Electric as part of the GE drive control system. This board connects power switching devices in the Innovation Series control rack. Designed specifically for low-voltage drives, it interfaces between IGBTs (Insulated Gate Bipolar Transistors) and the control rack. Notably, the board lacks test points, configurable items, or fuses and serves as an interface without amplification or power input. The DAME board connects IGBT power switching devices to the control rack without amplifying signals or requiring power input. It is one of six board variations and is rated for drives with 65 frames. The DAME board is designed for use with phase leg drives, and a single board can interface with all three phases. Although different IGBTs are used per phase leg, this board includes only one IGBT module for all phases.

The IS200DAMEG1A is a PCB component created by GE for the Mark VI system. This system was one of the last of the Speedtronic gas/steam turbine management line released by GE before they made it obsolete. The Speedtronic line began in the 1960s with the release of the MKI and continued through the 1990s with the Mark VI and Mark VIe. Each of these systems used the best technology available at the time of their release to create reliable management systems that would integrate with the turbine hardware and increase their efficiency by minimizing downtime.

The IS200DAMEG1A is an Innovation Series Gate Drive Amp/Interface Card. The board is used to interface between the control rack and a power switching device, like an IGBT, located in an Innovation Series low voltage drive. There are six versions of these drives, of which the IS200DAMEG1A is the lowest powered. The IS200DAMEG1A has no power input and provides no amplification for the interface.

The IS200DAMEG1A is part of a series of models known as Gate Driver Amplifier Interface Boards within the Mark VI series manufactured by General Electric. This model was designed to control interfacing between power switching devices, which are known as IGBTs for low voltage drives; and the control rack of the Innovation Series. The DAME board is used to provide interfacing without any type of amplification and has no power inputs. This board is one of six different variations and has a drive power rating of sixty-five frames.
