IS200DAMDG2A GE Control Circuit Board Interface Board Mark VI

IS200DAMDG2A GE Control Circuit Board Interface Board Mark VI

Product Details:

Description:

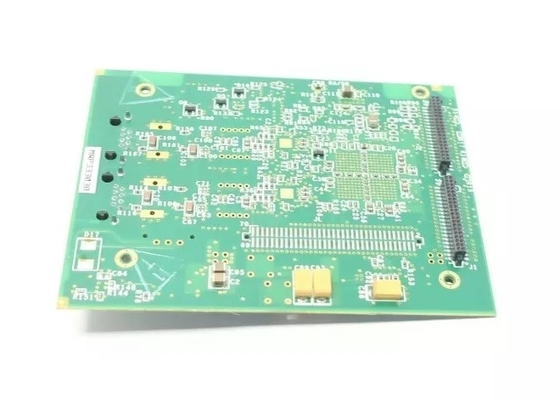

IS200DAMDG2A is a Gate Drive Interface Board manufactured and designed by General Electric as part of the Mark VI Series used in GE Drive Control Systems. The function of the Gate Drive Interface Board is to amplify the gate signals that control the power switches and to interface with the control system of the machinery. This board operates at a Frame Rate of 125, which refers to the frequency at which the board can send signals to the machinery. The Powerrex IGBT used in this board is the CM200DY-28H. The board comes with three board/drive units, which means that three separate units can be used to control different aspects of the machinery. The IGBT/phase leg configuration for each unit is one dual, which means that each unit contains one dual IGBT that controls one phase leg of the machinery. The Digital Amplifier Module board is a type of circuit board that serves as an interface between power-switching devices, specifically Insulated Gate Bipolar Transistors, and the control rack in low-voltage drives.

The GE IS200DAMDG2A is a terminal module used to connect input and output devices to control systems. The module provides a convenient and reliable way to connect a variety of industrial sensors, actuators, and other devices. The GE IS200DAMDG2A is a terminal module used to connect input and output devices to a control system. The module provides a convenient and reliable way to connect a variety of industrial sensors, actuators, and other devices. The GE IS200DAMDG2A terminal module has a compact design and can be mounted on a standard DIN rail. The module has 16 input channels that can be configured as discrete or analog inputs, and 16 output channels that can be configured as discrete or analog outputs. The discrete inputs on the GE IS200DAMDG2A module can accept signals from devices such as limit switches, proximity sensors, and push buttons. The analog inputs can accept signals from devices such as temperature sensors, pressure sensors, and flow sensors.

This IS200DAMDG2A printed circuit board product offering from General Electric was originally designed and manufactured specifically for placement in the Mark VI Turbine Control System Series, which was originally developed as a massive functional upgrade upon the previously-developed Mark V Series of the same full extended series name. This is considered an improvement on the Mark V Series as the Mark VI Series adds the alternative energy-focused wind turbine possible functional application onto the gas and steam turbine possible environments established in the Mark V. This IS200DAMDG2A product's greater Mark VI Turbine Control System Series is additionally separately considered a desirable GE Mark product series given its status as one of the last-developed GE Mark product series to make use of the patented Speedtronic control system technology across a number of component PCB products. This technology was first seen with the rollout of the Mark I Series in the mid to later 1960s.

• DAMD functional product abbreviation
• Normal PCB coating style
• Group two Mark VI Series product grouping
• A-rated functional product revision
