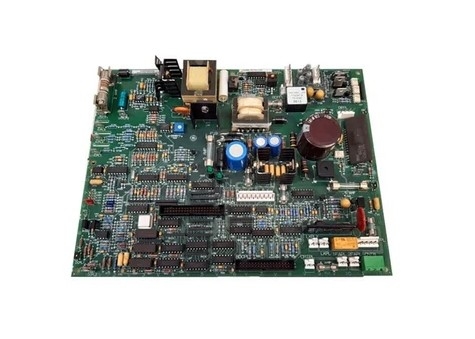

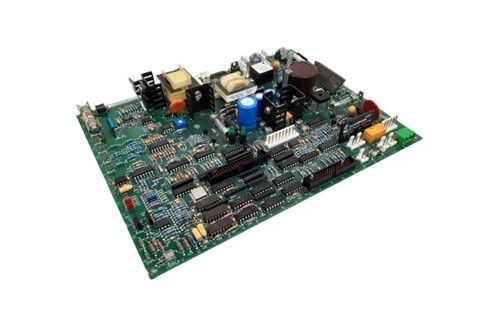

DS200IMCPG1C GE Power Supply Interface Board Turbine Control System Series

DS200IMCPG1C GE Power Supply Interface Board Turbine Control System Series

Product Details:

Description:

The DS200IMCPG1C printed circuit board is better-definable by its official functional product description as a Power Supply Interface Board, as it appears in original General Electric and Mark V Turbine Control System Series instructional manual information. While existing as a Power Supply Interface Board in its own right, this DS200IMCPG1C PCB is by no means considered the original product of its functionality created for the Mark V Series; that would be the DS200IMCPG1 parent Power Supply Interface Board missing this DS200IMCPG1C product's C-rated functional product revision. This DS200IMCPG1C printed circuit board or PCB for short was originally manufactured by General Electric to exist as a member of their Mark V Turbine Control System Series, as mentioned above. As alluded to through its full name, the Mark V Series has specific appications in the control and management systems of wind, steam and gas turbine automated drive assemblies, and exists as a legacy series due to its eventual discontinuation by the original manufacturer in the years following its initial release. While considered a General Electric legacy series, the Mark V Series is also one of the final General Electric Mark Series to feature their patented Speedtronic technology in its products.

The DS200IMCPG1CI Power Supply Interface Board DS200IMCPG1C can be connected through a cable to the DS200SDCC Drive Control Board. Connect the cable to the 1PL connector on the Drive Control Board. The GE IAC2000I Power Supply Interface Board DS200IMCPG1C has 8 fuses that protect the board components from over voltage conditions. The above information represents about the extent of original DS200IMCPG1C board information available in factory-printed instructional manual documentation.

• Normal Mark V Series assembly version
• Domestic location of original GE manufacture
• IMCP functional product acronym
• Normal style of PCB protective coating
• Group one Mark V Series grouping
• C-rated primary functional revision

This DS200IMCPG1C printed circuit board's sole revision is a functional revision as it makes stark improvements to the general performance specifications and overall functionality of the DS200IMCPG1 parent PCB, without making sacrifices for durability or aesthetic quality.
