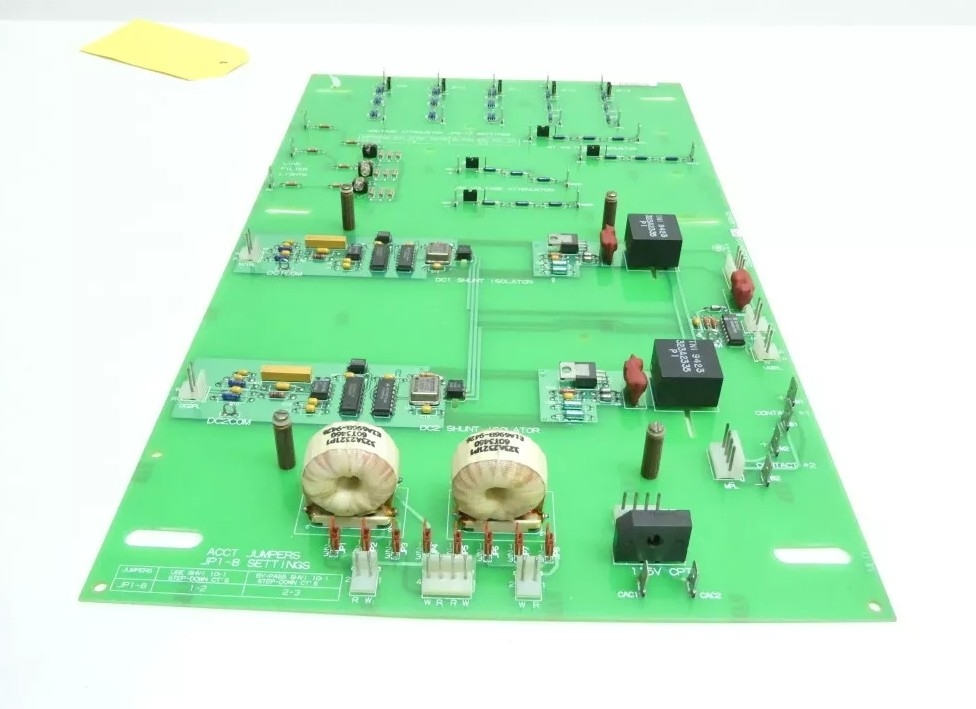

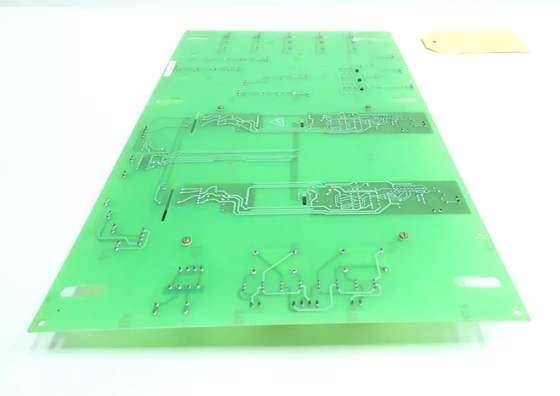

GE DS200ADGIH1A AuxilIary Interface Board Mark V Drive Module Brand New

GE DS200ADGIH1A AuxilIary Interface Board Mark V Drive Module Brand New

Product Details:

Description:

The SPEEDTRONIC Mark V Gas Turbine Control System is the latest derivative in the highly successful SPEEDTRONIC™ series. Preceding systems were based on automated turbine control, protection and sequencing techniques dating back to the late 1940s, and have grown and developed with the available technology. Implementation of electronic turbine control, protection and sequencing originated with the Mark I system in 1968. The Mark V system is a digital implementation of the turbine automation techniques learned and refined in more than 40 years of successful experience, over 80% of which has been through the use of electronic control technology.

The SPEEDTRONIC Mark V Gas Turbine Control System employs current state-of-the-art technology, including triple-redundant 16-bit microprocessor controllers, two-out-of-three voting redundancy on critical control and protection parameters and Software-Implemented Fault Tolerance (SIFT). Critical control and protection sensors are triple redundant and voted by all three control processors. System output signals are voted at the contact level for critical solenoids, at the logic level for the remaining contact outputs and at three coil servo valves for analog control signals, thus maximizing both protective and running reliability. An independent protective module provides triple redundant hardwired detection and shutdown on overspeed along with detecting flame. This module also synchronizes the turbine generator to the power system. Synchronization is backed up by a check function in the three control processors.

The DS200ADGIH1A is an ARCNET (Attached Resource Computer Network) card manufactured by General Electric for their Mark V series. The Mark V is part of GE's successful Speedtronic line of gas/steam turbine management systems. This series has been managing heavy duty turbine systems since the 1960s, with GE developing more reliable and advanced systems as technology allowed. The Mark V has built in triple redundant backup of all critical control and protection parameters and includes features such as built in diagnostics and online maintenance.

The main function of this interface board is to connect and control high voltage thyristors, which are responsible for regulating current and voltage to adapt to different operating conditions. By accurately controlling current, DS200SHVIG1BFC and DS200SHVIG1BGD can optimize motor performance and improve the overall efficiency of the system. The interface board has excellent anti-interference ability, can operate stably in high noise environments, and ensure accurate signal transmission. In addition, the built-in self-diagnosis function can monitor the system status in real time, identify faults in time and provide alarm information, helping operators to take quick action and reduce potential downtime.
