GE DS200FSAAG2A Mark VI Field Supply Gate Amplifier Board Brand New

GE DS200FSAAG2A Mark VI Field Supply Gate Amplifier Board Brand New

Product Details:

Description:

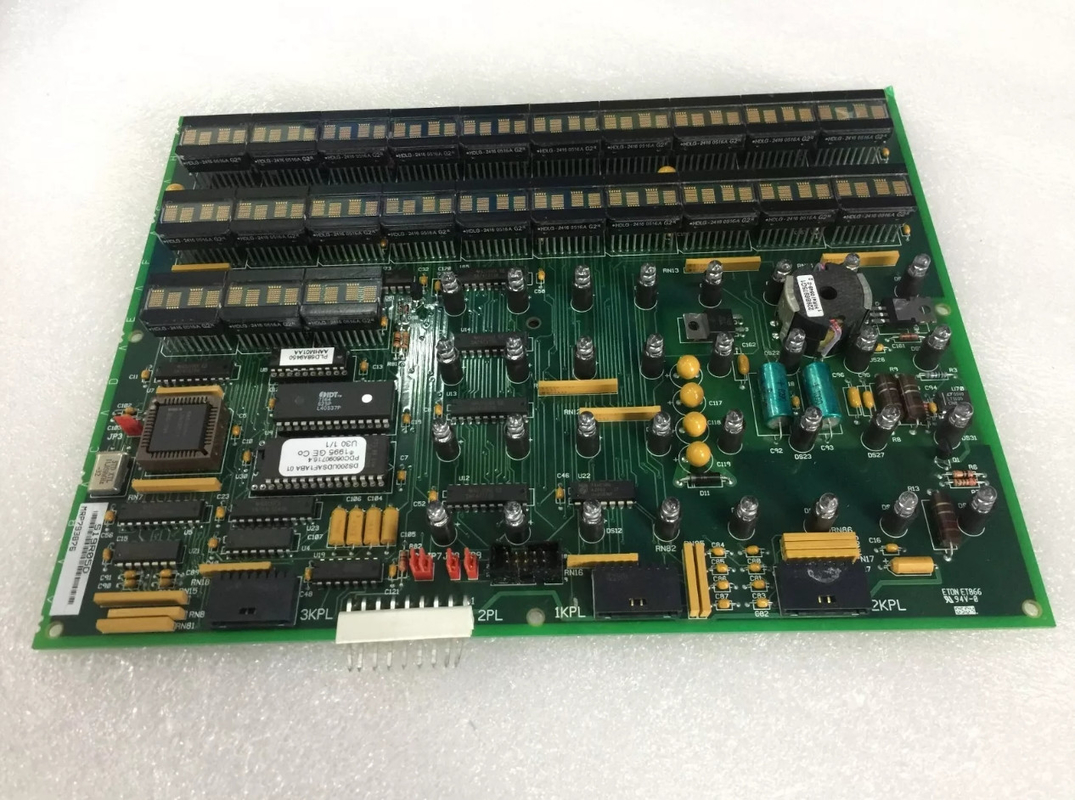

DS200FSAAG2A is a Field Supply Amplifier Board manufactured and designed by General Electric as part of the Mark V Series used in GE Speedtronic Drive control systems. There are 5 jumpers, a 10-pin connector, 2 fuses, and more on the GE Field Supply Amplifier Board. It is also filled with a variety of test points. A 10-pin terminal connector is present. It has parts that take in a signal and amplify it by sending it through a transistor, integrated circuit, or tube that combines it with more current from a power source. The FPL and connector may be found at the bottom. The fuses have the labels FU2 and FU3 on them. Fast-acting Limitron fuses are the ones used. Each of the FSAA's changeable fuses has a rating of 600 volts and 30 amps.

The GE DS200FSAAG2A Field Supply Gate Amplifier Board features 5 jumpers, one 10-pin connector, and two fuses. It is also populated with multiple test points. The fuses on the GE Field Supply Gate Amplifier Board DS200FSAAG2A are rated as 600 volts and 30 amps each and are replaceable. If you suspect that the board is not operational, before you decide to replace the board, inspect the fuses and verify that one or both of the fuses are blown. That can happen if too much current is supplied to the board. The fuses are engineered to protect the board by preventing the jolt of high voltage from damaging the components on the board and other components in the drive.

The two fuses applied to the assembly of this DS200FSAAG2A Field Supply Gate Amplifier Board are both mounted on on onboard fuse block for additional protections, and are classified in original General Electric instructional manual materials as the 30 A, 60 V, fast-acting style of fuse. As mentioned above, this DS200FSAAG2A Field Supply Gate Amplifier Board has five total jumpers in its assembly; these jumpers have also been specified in original General Electric instructional manual materials as Berg-type manually-moveable jumpers, each of which adorned with its own JP factory-printed nomenclature label. These jumpers have been included in the assembly of this DS200FSAAG2A Field Supply Gate Amplifier Board to provide the DS200FSAAG2A board's greater drive administrator with a NRX option.

The DS200FSAAG2ABA Field Supply Gate Amplifier Board was manufactured for General Electric's Mark V Turbine Control System Series.The operating voltage of DS200FSAAG2ABA is 220V and the output frequency is 50kHz, which can meet the needs of most industrial sites. It uses a high-efficiency Super scalar RISC CPU and has an Ethernet co-processing function, allowing Ethernet communication modules to be inserted into specific slots at the same time, enhancing communication flexibility and efficiency.
