GE IS200BPIAG1AEB IGBT Drive Bridge Interface Board Turbine Control

GE IS200BPIAG1AEB IGBT Drive Bridge Interface Board Turbine Control

Product Details:

Description:

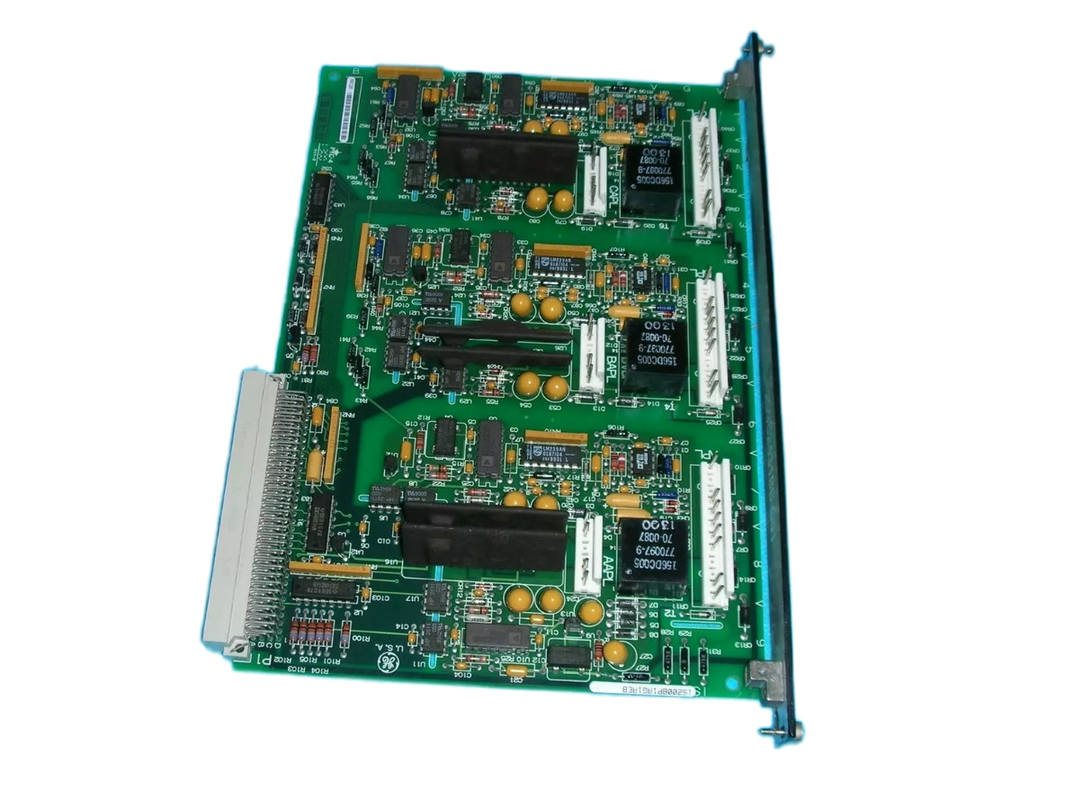

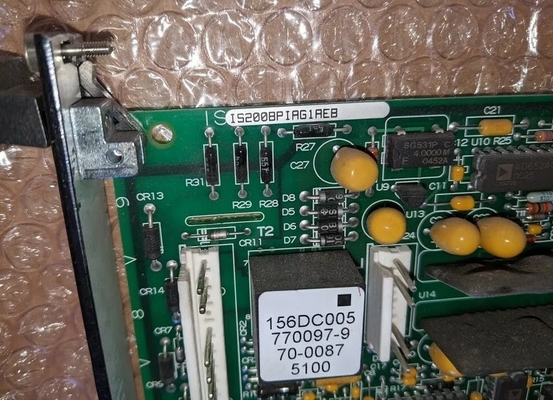

The IS200BPIAG1AEB is a Drive Bridge Personality Interface Card manufactured by General Electric for their Mark VI series. The MKVI is one of the most recent steam/gas heavy-duty turbine management systems in the Speedtronic line released by GE. The MKVI offers complete control, protection, and monitoring of heavy-duty turbine systems, and is adaptable and scalable for the use in a variety of applications. The MKVI is based around a 13- or 21- slot VME card rack Control Module. The IS200BPIAG1AEB provides a connection between the control and power electronics of an IGBT ac drive. The IS200BPIAG1AEB is designed with seven board connectors. This includes its primary P1 connector that connects into the rack system and handles a variety of signals, including gate drive and shunt fault signals, application data from the BPIA board, and some bridge control connections. The board has six other male vertical pin connectors (APL, BPL, CPL, AAPL, BAPL, CAPL,) that provide connections to the phase A/B/C IGBTs.

This IS200BPIAG1AEB product was originally manufactured in General Electric's Salem, Virginia factory plant location. The IS200BPIAG1AEB is a Drive Bridge Personality Interface Card manufactured by General Electric for their Mark VI series. The MKVI is one of the most recent steam/gas heavy-duty turbine management systems in the Speedtronic line released by GE. The Mark VI Series offers complete control, protection, and monitoring of heavy-duty turbine systems, and is adaptable and scalable for the use in a variety of applications. The MKVI is based around a 13- or 21- slot VME card rack Control Module.

The IS200BPIAG1AEB provides a connection between the control and power electronics of an IGBT ac drive. The IS200BPIAG1AEB is designed with seven board connectors. This includes its primary P1 connector that connects into the rack system and handles a variety of signals, including gate drive and shunt fault signals, application data from the BPIA board, and some bridge control connections. The board has six other male vertical pin connectors (APL, BPL, CPL, AAPL, BAPL, CAPL,) that provide connections to the phase A/B/C IGBTs.

IS200BPIAG1AEB is a gate driver board manufactured and designed by General Electric, and is part of the drive control innovation series used in GE Speedtronic Drive turbine control systems. A gate driver board is an electronic device used in power electronics applications to control the switching of power semiconductor devices, such as insulated gate bipolar transistors (IGBT) or MOSFETs. It provides the necessary voltage and current signals to efficiently and reliably turn on and off power equipment.
