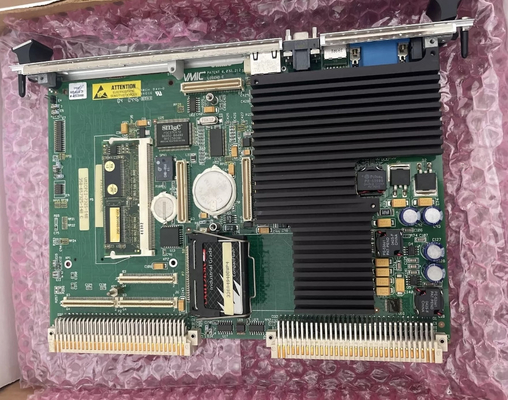

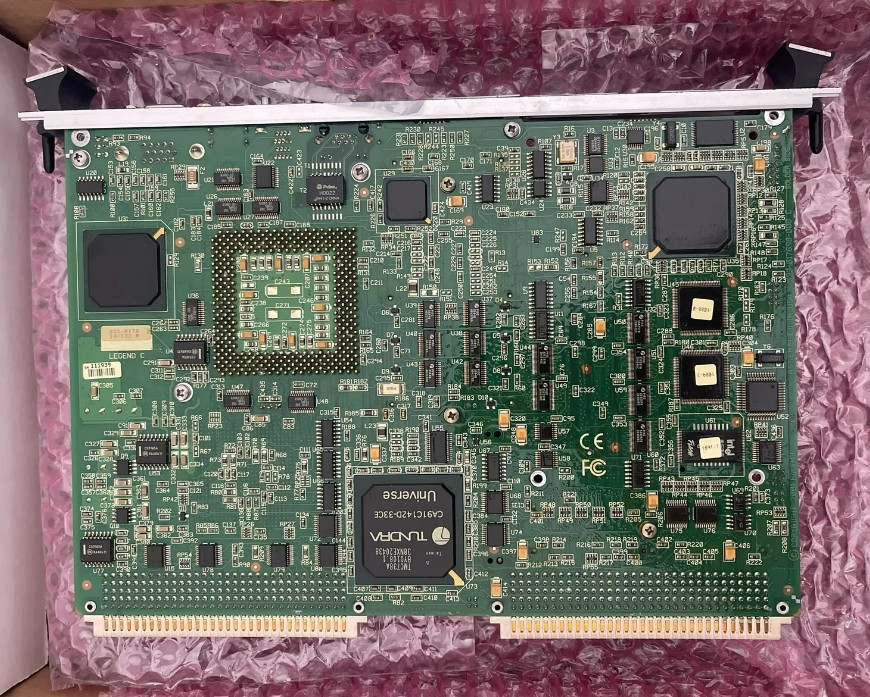

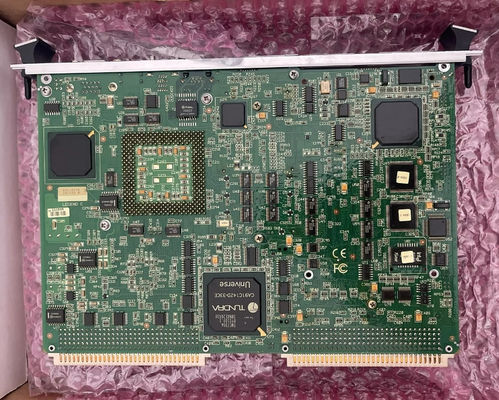

GE IS215UCCAM03A Advanced Control Board Mark VI CPCI Controller module

GE IS215UCCAM03A Advanced Control Board Mark VI CPCI Controller module

Product Details:

Description:

This board, the IS215UCCAM03A board, is one of the UCCx controllers. The UCCx controller is based on a single-board computer known as the CompactPCI, or CPCI. This board is part of the Mark VIe system produced by General Electric, although this specific model is considered compatible with the later Mark VIeS system models as well. This model is essentially an IS215UCCAH3 board combined with an IS200EPMC, 128 MB of flash memory, and 128 MB of DRAM. The Mark VI Turbine Control System Series accommodating this IS215UCCAM03A CompactPCI assembly module device is something of a self-described GE Mark product series, given the fact that it exists with a series of possible functional applications in the control and management systems of General Electric-compatible gas, wind, and steam turbine automated drive assemblies. This must be considered quite the functional upgrade upon the previously-existing Mark V Turbine Control System Series of a similar full extended series name, as the Mark V Series' possible applications exist in more restricted gas and steam-based functional settings alone.

The IS215UCCAM03A Compact PCI is a single-slot processing board with a series of unique and important product specifications. This board has several LEDs on the front faceplate of the board. Some of these LEDs are; UDH Ethernet Status, Status, DC, Diag, IONet Ethernet, and ON LEDs. There are three statuses for the UDH Ethernet LED, there is an Active LED which will blink, and there is a Speed LED, which is green for the 100 BaseTX, and yellow for 10 Base T. These LED indicators are often triggered through an interruption of IS215UCCAM03A's environmental specifications or power requirements. For normative function, this UCCA PCB is advised to run in temperatures between 0 to 60 degrees Celsius, with an ideal storage temperature ranging from -45 to 85 degrees celsius.

The humidity range for this model is outlined at 5 to 95%, and it carries an operating altitude of o to 10,000 feet with a storage altitude of 0 to 40,000 feet above sea level. In terms of voltage power inputs, the IS215UCCAM03A demands +3.3 V dc, 3.5 A typical, 4.25 A maximum and +5 V dc, 150 mA typical, 300 mA maximum rated voltages. There are a series of port and protocol specifications specfic to the IS215UCCAM03A board, which vary quite a bit. As displayed on the IS215UCCA components diagram below; the EPMC Ethernet Interface is made up of three ports, an RJ-45 connector, and a twisted pair of 10BaseT and 100BaseTX connectors. Within the EPMC Ethernet Interface, there are protocols that are used to communicate between the I/O packs and controllers; those protocols are TCP/IP protocols.

The IS215UCCAM03A is a controller module that mounts within the CPCI enclosure. The board has five communication ports. These provide lines to the R, S, and T I/O network, an Ethernet connection to the UDH, and an RS-232C connection for setup. The controller needs to be configured with a TCP/IP address before being connected to the UDH Ethernet. This can be done through the ToolboxST application. Engineered for high-performance control systems, the GE IS215UCCAM03A CPCI Controller Module offers seamless integration and enhanced operational efficiency in industrial automation.
