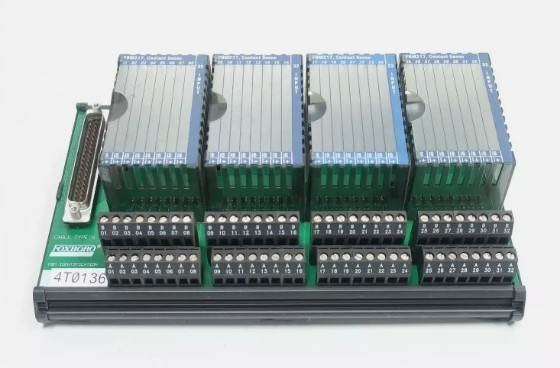

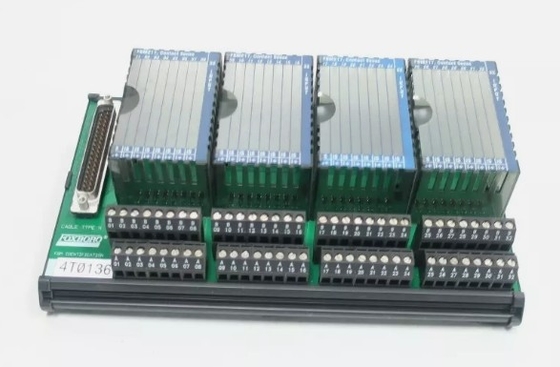

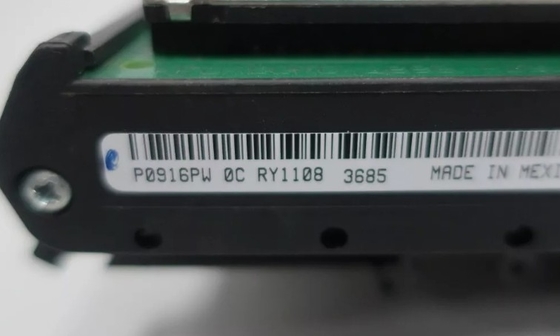

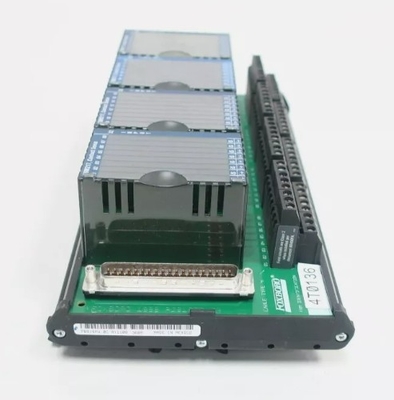

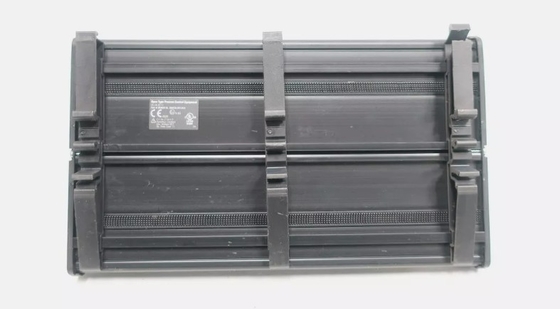

Foxboro P0916PW FBM217 Thirty-Two Discrete Input Interface Module Single Or Redundant Modules

Foxboro P0916PW FBM217 Thirty-Two Discrete Input Interface Module Single Or Redundant Modules

Product Details:

Additional Information:

Description:

The FBM217 Discrete Input Interface Module provides 32 input channels, each accepting a 2-wire input from a dc voltage source. Associated termination assemblies (TAs) provide for discrete inputs of under 60 V ac, 120 V ac/125 V dc or 240 V ac.

The module performs signal conversion required to interface the electrical input signals from the field sensors to the Module Fieldbus.

FBM217 has a compact design, with a rugged extruded aluminum exterior for physical protection of the circuits. Enclosures specially designed for mounting the FBMs provide various levels of environmental protection, up to harsh environments, per ISA Standard S71.04.

For TAs which provide group isolation (P0916CA, P0916CB, P0916PW, P0916PX and P0916XZ), input channels are group isolated from earth (ground). For details, refer to the I/A Series DIN Rail Mounted Subsystem User’s Guide (B0400FA).

These module/TA combinations can withstand, without damage, a potential of 600 V ac applied for one minute between the group isolated channels and earth (ground).

Datasheet Link:

FOXBORO P0916PW FBM217.pdf
