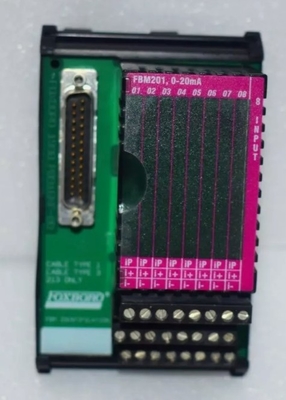

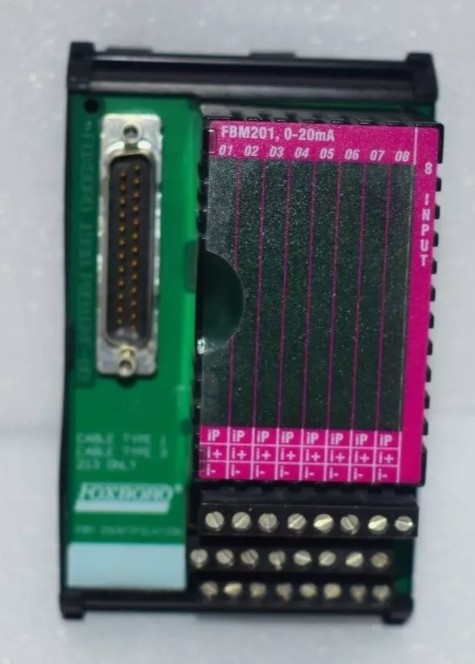

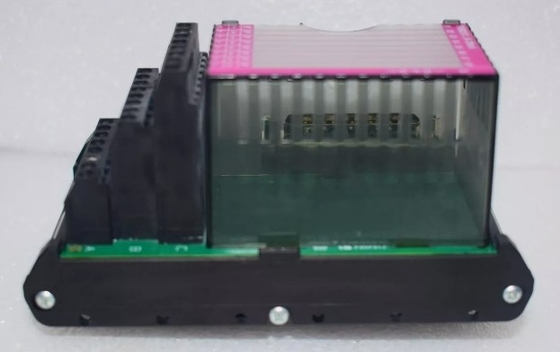

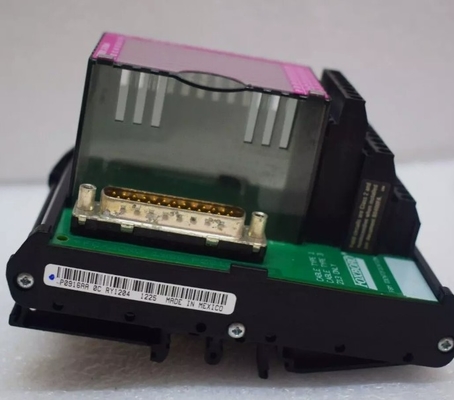

Foxboro P0916AA FBM201 /B/C/D Analog Input Module Contains Eight Analog Input Channels Accepting A 2 Wire

Foxboro P0916AA FBM201 /b/c/d Analog Input Module contains eight analog input channels accepting a 2-wire

Product Details:

Additional Information:

Description:

The modules (FBM201) perform the signal conversion required to interface the electrical input signals from the field sensors to the optionally redundant fieldbus. The FBM is electrically compatible with standard HART signals.

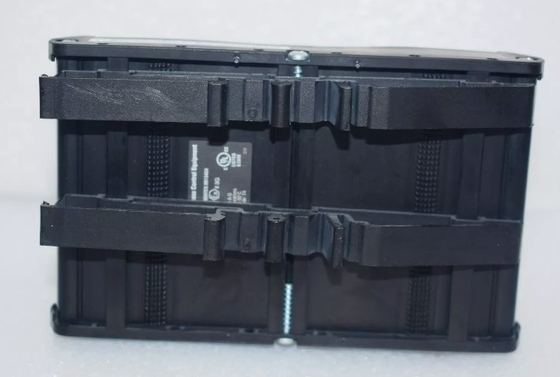

The FBM201/b/c/d modules have a rugged extruded aluminum exterior for physical protection of the circuits. Enclosures specially designed for mounting the FBMs provide various levels of environmental protection, up to harsh environments of Class G3 as defined in ISA Standard S71.04.

A Fieldbus Communication Module or a Control Processor interfaces the redundant 2 Mbps module Fieldbus used by the FBMs. The FBM201/b/c/d modules accept communication from either path (A or B) of the redundant 2 Mbps fieldbus – should one path fail or be switched at the system level, the module continues communication over the active path.

For high accuracy, the modules incorporate sigmadelta data conversion on a per-channel basis, which can provide a new analog input reading every 25 ms, and a configurable integration period to remove any process and/or electromagnetic noise.

Datasheet Link:

FOXBORO P0916AA FBM201.pdf
