Name: Foxboro P0400DA FBM01 0-20 mA Input Interface Contains Eight 20 MA Dc Analog Input Channels I/A Series Hardware
Brand: Joyoung International Trading Co.,Ltd
SKU: P0400DA FBM01
Price: 4,690.00 USD
Availability: InStock

Home Products Foxboro Parts

Foxboro P0400DA FBM01 0-20 mA Input Interface Contains Eight 20 MA Dc Analog Input Channels I/A Series Hardware

Product Details:

Place of Origin:	USA
Brand Name:	Foxboro
Certification:	CO
Model Number:	P0400DA FBM01

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	inquiry
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Product Name:	Foxboro	Product Model:	P0400DA FBM01
Warranty:	1 Year	Cnc Machining Or Not:	CNC Machining
Micro Machining Or Not:	Micro Machining	Application:	Auto /medical/agricultural/train/valve/textile
Size:	Standard	Packing:	Packed In Plastic Bag With Carton For Outer Packing Or As Your Request
Gross Weight:	1kg	Packing Size:	5.1" X 2.8" X 6" (13 Cm X 7 Cm X 15 Cm)
Highlight:	Foxboro P0400DA FBM01 , 20 mA Input Interface , I/A Series Hardware

Foxboro P0400DA FBM01 0-20 mA Input Interface contains eight 20 mA dc analog input channels I/A Series Hardware

Product Details:

Brand Name	Foxboro
Model	P0400DA FBM01
Condition	New
Gross Weight/Shipping Weight	2.2 lbs / 35.2 oz / 1kg
Packing Size	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Country of Origin/Original Country	United States (USA)
Lead Time	In Stock
Shipping Port	Xiamen
Payment	T/T
Sales Price	Inquiry
Color	Depend on product
Warranty	12 months
Lead time	3-5 work days
Courier partners	DHL, UPS, TNT, FedEx and EMS

Additional Information:

Conversion Time (Seconds)	Update Time (Milliseconds)	Settling Time(a) (Seconds)	Linearity Error(b) (% of Range)	Resolution (Bits)
0.1	10	0.25	0.0125	12
0.2	10	0.50	0.0075	13
0.5	25	1.00	0.005	14
1.0	50	2.00	0.005	15

Description:

This module (FBM01) executes the analog Input application program. The configurable options for this program are Analog Input Resolution (on a per module basis), Fieldbus Switching Enable, and Fieldbus Switching Time.

The 0 - 20 mA Input Interface contains eight 20 mA dc analog input channels. Each channel accepts a 2-wire, analog sensor input such as a 4 to 20 mA transmitter or a self-powered 20 mA source.

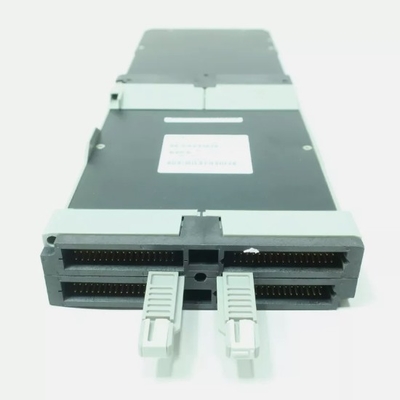

Foxboro P0400DA FBM01 0-20 mA Input Interface Contains Eight 20 MA Dc Analog Input Channels I/A Series Hardware 0

The module performs the signal conversion required to interface the electrical input signals from the field sensors to the redundant Fieldbus. The module is a main type, and independently connects to the redundant Fieldbus.

The module (FBM01) will withstand, without damage, a potential of 600 V ac applied for one minute between any channel and earth (ground), or between a given channel and any other channel.

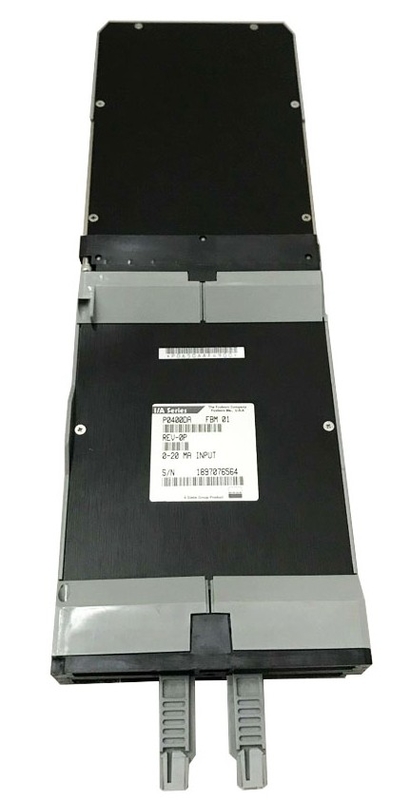

Foxboro P0400DA FBM01 0-20 mA Input Interface Contains Eight 20 MA Dc Analog Input Channels I/A Series Hardware 1

Datasheet Link:

FOXBORO P0400DA FBM01.pdf
