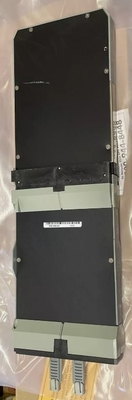

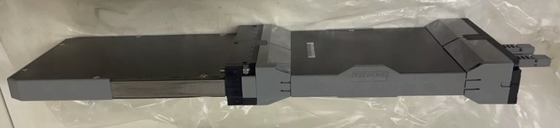

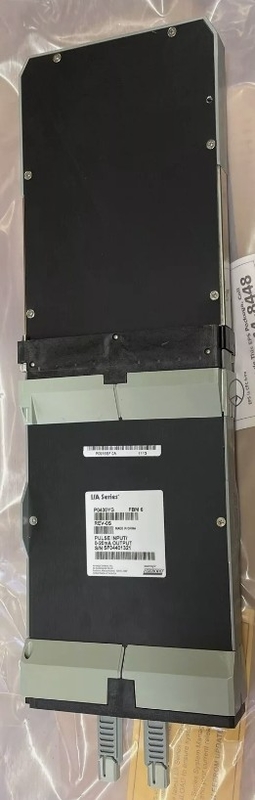

Foxboro P0400YG FBM06 Pulse Input 0-20 mA Output Interface Module I/A Series Hardware

Foxboro P0400YG FBM06 Pulse Input 0-20 mA Output Interface Module I/A Series Hardware

Product Details:

Additional Information:

Description:

This module (FBM06) executes the pulse input/analog output application program. The configurable options for this program are Pulse Rate Input Resolution (on a per module basis), Meter Scaling Factor, Fail-Safe Configuration (Hold/Fallback), Analog Output FailSafe Fallback Data, (on a per channel basis), Fieldbus Switching Enable and Fieldbus Switching Time.

The Pulse Input, 0 to 20 mA Output Interface Module contains four configurable pulse input channels and four 20 mA dc analog output channels. Each input channel accepts a pulse input, with a maximum rate of 12.5 kHz. The input devices include vortex and turbine meters, solid state or electro-mechanical contacts and other sensors with similar pulse outputs. Each output channel drives an external load and produces a 0 to 20 mA output.

The module performs the signal conversion required to interface the electrical input/output signals from/to the field sensors and actuators to/from the redundant Fieldbus. The module is a main type, and independently connects to the redundant Fieldbus.

An optional style of termination cable assembly is available which includes built-in bypass jacks for each output channel on the front connector of the Fieldbus Module. Jacks accept a bypass plug from the I/A Series Output Bypass Station or other external 20 mA source. This option should be considered for applications where maintaining output is desired during maintenance operations, for example, when replacing a failed module.

Datasheet Link:

FOXBORO P0400YG FBM06.pdf
