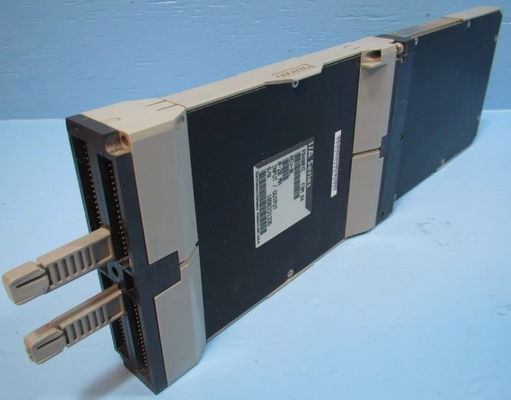

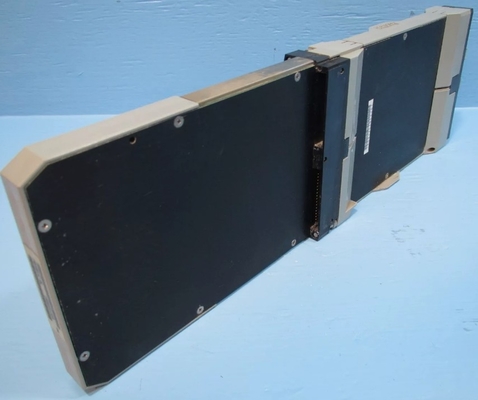

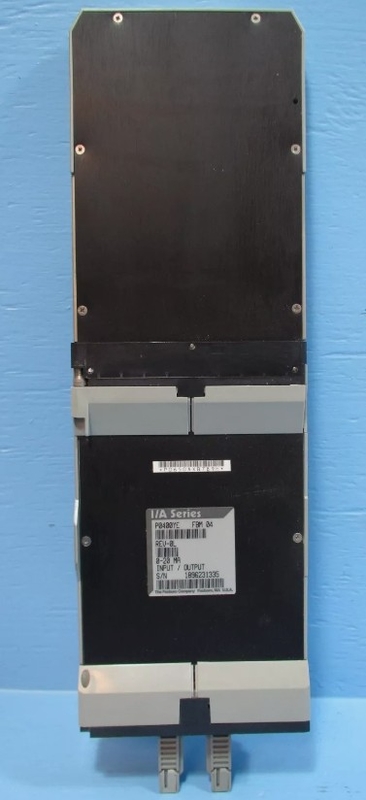

Foxboro P0400YE FBM04 0-20 MA Interface Module Contains Four Dc Analog Input Channels And Four Output Channels

Foxboro P0400YE FBM04 0-20 mA Interface Module Contains Four Dc Analog Input Channels And Four Output Channels

Product Details:

Additional Information:

Description:

This module (FBM04) executes the analog I/O application program. The configurable options for this program are Analog Input Resolution (on a per module basis), Fail-Safe Configuration (Hold/Fallback), Analog Output Fail-Safe Fallback Data, (on a per channel basis), Fieldbus Switching Enable and Fieldbus Switching Time.

The 0 to 20 mA Input/Output Interface Module contains four 20 mA dc analog input channels and four 20 mA dc analog output channels. Each input channel accepts an analog sensor input such as a 4 to 20 mA transmitter or a self-powered 20 mA source.

Each output channel drives an external load and produces a 0 to 20 mA output. The module performs the signal conversion required to interface the electrical input/output signals from/to the field sensors and actuators to/from the redundant Fieldbus. The module is a main type, and independently connects to the redundant Fieldbus.

The module withstands, without damage, a potential of 600 V ac applied for one minute between any channel and earth (ground), or between a given channel and any other channel.

Datasheet Link:

FOXBORO P0400YE FBM04.pdf
