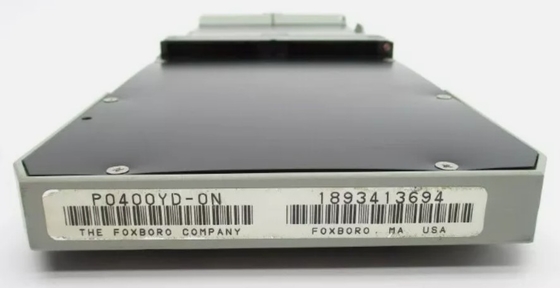

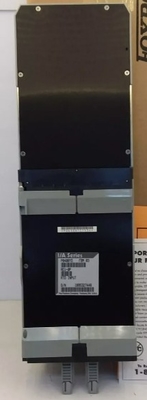

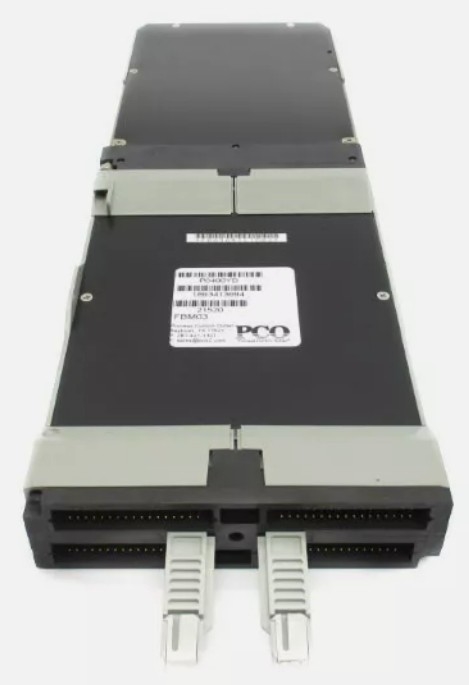

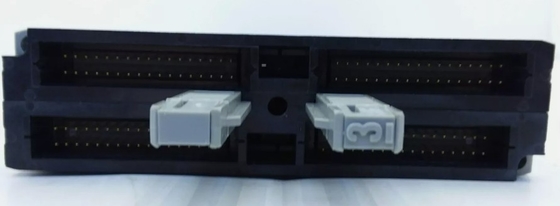

Foxboro P0400YD FBM03 Eight Resistance Temperature Detector (RTD) Input Channels And I/A Series Hardware Platinum

Foxboro P0400YD FBM03 Eight Resistance Temperature Detector (RTD) Input Channels And I/A Series Hardware Platinum

Product Details:

Additional Information:

Description:

The RTD Input Interface Module (FBM03) contains eight Resistance Temperature Detector (RTD) input channels. Each channel accepts either a 2- and 4- wire RTD, or 3-wire RTD sensor input within a 0 to 320 ohm resistance range. Within the same module, 3-wire RTDs may not be mixed with 2- or 4-wire RTDs.

The module performs the signal conversion required to interface the electrical input signals from the RTD to the redundant Fieldbus. The module is a main type, and independently connects to the redundant Fieldbus.

This module executes the Analog Input application program. The configurable options for this program are Analog Input Resolution (on a per module basis), Fieldbus Switching Enable, and Fieldbus Switching Time.

This module executes the Analog Input application program. The configurable options for this program are Analog Input Resolution (on a per module basis), Fieldbus Switching Enable, and Fieldbus Switching Time.

Datasheet Link:

FOXBORO P0400YD FBM03.pdf
