Foxboro FBM237 P0914XS Eight Analog Output Channels 0-20 mA Signals Are Electrically Compatible With HART Field Devices

Foxboro FBM237 P0914XS Eight Analog Output Channels 0-20 mA Signals Are Electrically Compatible With HART Field Devices

Product Details:

Additional Information:

Description:

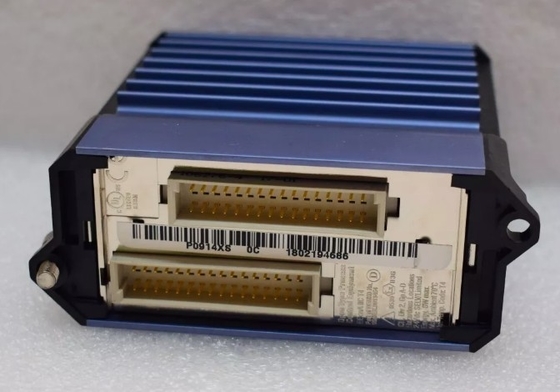

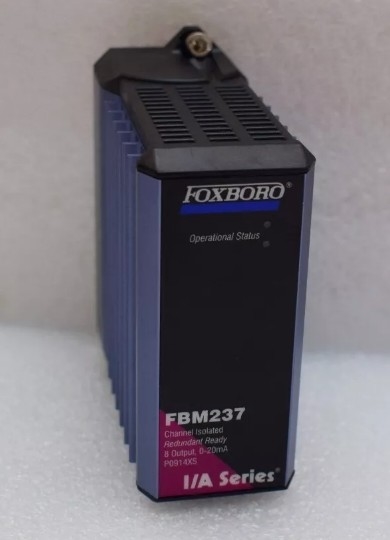

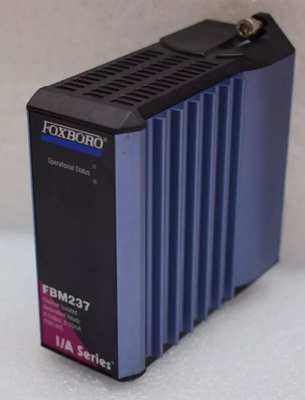

FBM237 has a modular design, with a rugged extruded aluminum exterior for physical protection of the circuits. Enclosures specially designed for mounting the FBMs provide various levels of environmental protection, up to harsh environments (Class G3), per ISA Standard S71.04.

The FBM237, 0 to 20 mA Output Module contains eight channels.The outputs are galvanically isolated from other channels and ground. The module can be used as a single unit, or as a redundant pair (two FBM237s). When used as a redundant pair, field output signals are wired to one common termination assembly. Each module in the pair independently holds the output(s) at its specified output value(s).

The module mounts on the Standard Modular baseplate, which accommodates up to eight Fieldbus Modules. The Modular baseplate is either DIN rail mounted or rack mounted,and includes signal connectors for redundant Fieldbus,redundant independent dc power,and termination cables.

Redundant modules must be located in adjacent odd/even position pairs on the baseplate (positions 1 and 2, 3 and 4, 5 and 6, or 7 and 8). To achieve the redundant output, a redundant adapter module is placed on the two adjacent baseplate termination cable connectors to provide a single termination cable connection. A single termination cable connects from the redundant adapter to the associated TA.

The FBM237 mounts on a modular baseplate. The baseplate can be mounted on a DIN rail (horizontally or vertically), or horizontally on a 19-inch rack using a mounting kit. Redundant modules must be located in odd and even adjacent positions on the baseplate (positions 1 and 2, 3 and 4, 5 and 6, or 7 and 8) along with the appropriate redundancy adapter.

Datasheet Link:

FOXBORO FBM237 P0914XS.pdf
