ABB 88QT03C-E GJR2374500R2111 Bus Coupler 24 VDC DCS System Card

ABB 88QT03C-E GJR2374500R2111 Bus Coupler 24 VDC DCS System Card

Product Details:

Description:

In relation to the input/output station the module acts as a processing module. It receives and transmits a total of up to 256 telegrams. The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports for connection to the Control Network, and two RJ45 serial ports. One of the serial ports is an RS-232C port with modem control signals, whereas the other port is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

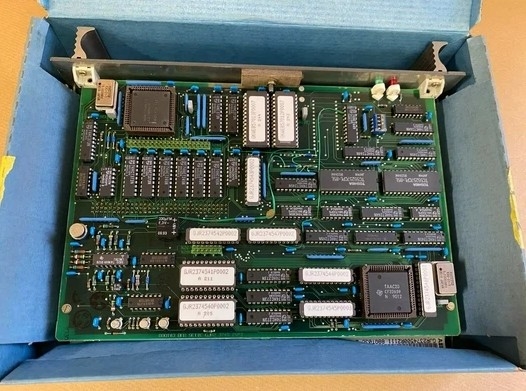

ABB 88QT03C-E GJR2374500R2111 Bus Coupler is a high-performance bus coupler designed for data communication and network integration in ABB industrial automation systems. The coupler is designed for 24 VDC power supply systems. Its main function is to achieve effective connection and data transmission between different bus systems, ensuring seamless integration and information flow between system components. 88QT03C-E has high compatibility and can support multiple types of bus protocols and communication standards. It ensures smooth data exchange between different bus systems by providing stable interfaces and protocol conversion, solving compatibility issues caused by system heterogeneity. The coupler can connect and integrate multiple network nodes, realize centralized management and control, and improve the overall efficiency and ease of operation of the system.

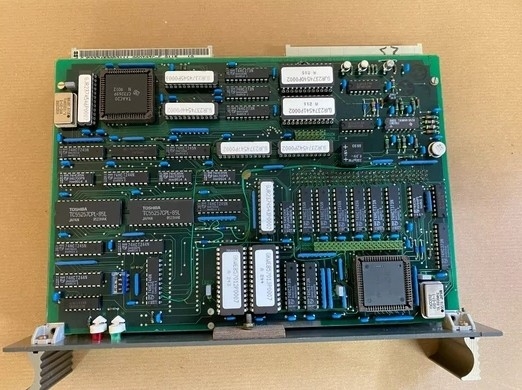

The 88QT03 bus coupling module is used to connect PROCONTROL P to the bus of the PROCONTROL ---PS protection system. Connected to the station bus, the module behaves like a combined input/output module that is able to receive up to 255 telegrams from the station bus and send up to a maximum of 200 telegrams to the station bus. 88QT03C-E is ABB PROCONTROL system Coupling Module comprises the following three function blocks section for specific station bus functions. The module can be plugged into any station of the PROCONTROL bus system. It requires two divisions.

These functions cooperate via two shared memories. The station-bus shared memory is a assigned to the station bus and the input/output-station-bus shared memory to the input/output station. The bus coupling module 88QT03 connects the station bu sand the input/output station. In relation to the input/output station the module acts as a processing module. It receives and transmits a total of up to 256 telegrams. In conjunction with the module 88QB03-E/R0100 the bus coupling module can be installed in the PROCONTROL cabinets 89MS01 and 89MS02, too.
