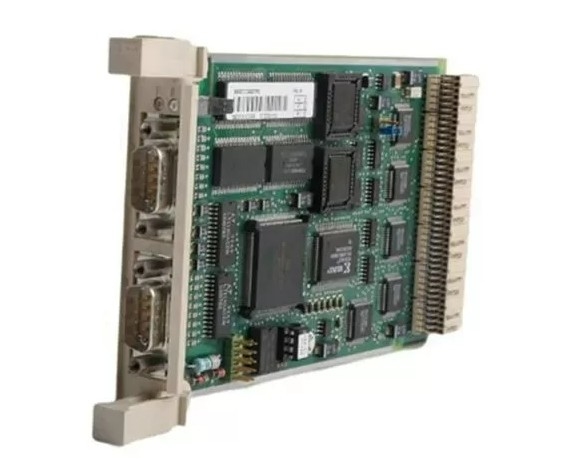

ABB 88QB03B-E GJR2393800R0100 Bus Termination Bus Coupling Device

ABB 88QB03B-E GJR2393800R0100 Bus Termination Bus Coupling Device

Product Details:

Additional Information:

Description:

ABB GJR2393800R0100 88QB03B-E is a dedicated bus terminal module for distributed control system of procontrol P. Its main function is to stop the quantity end of procontrol P mother ship to prevent the reflection of signal and ensure the optimal transmission of signal. In addition, the impedance of the mothership kevl and the impedance of the mothership electronics were interlocked to improve the overall performance of the system.

The ABB GJR2393800R0100 880B03B-E serves as a vital bus coupling device within Procontrol P and T systems. Specifically designed, it facilitates the connection of multiple Procontrol I/O modules to a shared bus,easing system expansion. Additionally, it functions to terminate the bus, mitigating signal reflections and preserving data integrity. Its housing is made of high-quality materials with good anti-vibration, high temperature resistance and dustproof functions to ensure stable operation under harsh environmental conditions. The internal components of the module are precisely designed and manufactured to ensure excellent performance under long-term and high-load use.

The ABB GJR2393800R0100 88QB03B-E is a bus termination module designed for use in the Procontrol system. The module uses advanced terminal technology to effectively end the bus signal link and prevent the impact of signal reflection and interference on system communication. It ensures the integrity and stability of the signal in the bus system by providing precise terminal impedance matching, and supports the stable operation of high data transmission rates and high-frequency signals. This can improve the data transmission performance of the system and avoid communication errors and data loss caused by signal problems.

In addition, the module has a variety of interfaces and connection options to support compatibility with different types of bus systems and control devices. Its installation and wiring design has been optimized to make the configuration process simple and fast, reducing system integration time. To facilitate maintenance, 88QB03B-E also provides a diagnostic function that can monitor the bus status in real time, detect and handle possible faults in a timely manner, and reduce system downtime and maintenance costs.
