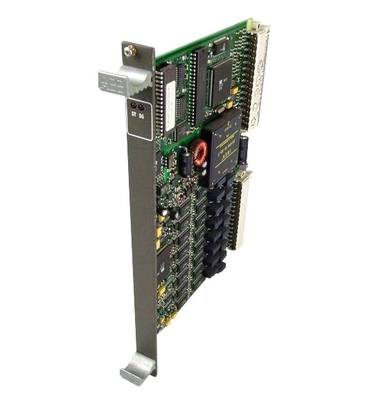

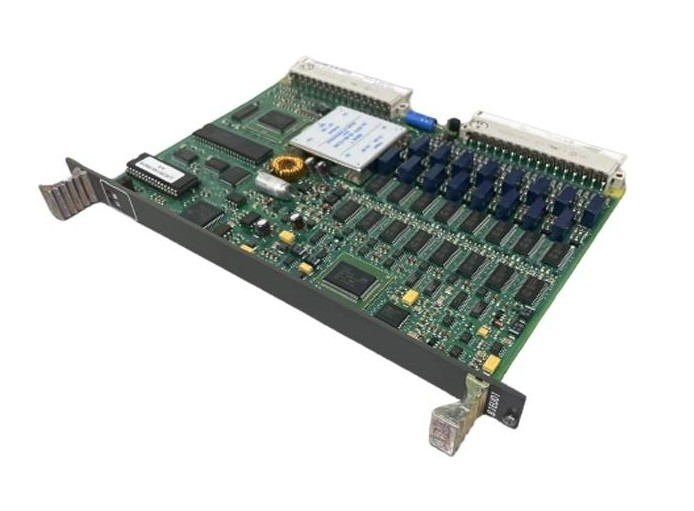

ABB 81EU01F-E GJR2391500R1210 Procontrol P14 Universial Input Module

ABB 81EU01F-E GJR2391500R1210 Procontrol P14 Universial Input Module

Product Details:

Description:

The ABB 81EU01F-E GJR2391500R1210 is part of ABB Procontrol P14 control module. It is consists of 16 function units. Each function unit may be used for any type of input mode. Any combination is possible. Parameter allocation and setting is programmed easily via the configuration list. The programmed values are stored in an EEPROM to ensure that they are not lost in the event of power failure. They can be changed any time. The module can be plugged into any station of the PROCONTROL bus system.It incorporates a standard interface for the PROCONTROL station bus.The module address is set automatically when the module is plugged into the PROCONTROL station.The telegrams received over the bus are checked by the module for error-free transmission based on their parity bits.

The ABB 81EU01F-E GJR2391500R1210 module transmits the input signals and/or converted input signals in telegrams via the station bus to the PROCONTROL bus system. Before transmission the telegrams are checked and provided with parity bits. This ensures that the receiving module can check for fault-free transmission. The module checks the telegrams received over the station bus, e.g. those intended for corrective calculations, by their parity bits for fault-free transmission.

ABB PROCONTROL P is a digital process control system designed for power plants. It was introduced in 1982 and is known for its reliability and functionality. It can be used for a variety of applications, from small local control systems to large generation units. It can be integrated with existing systems, making it suitable for retrofitting and refurbishing existing plants. It offers a wide range of features for boiler protection, turbine control, engineering, and diagnostics.

The ABB 81EU01F-E GJR2391500R1210 module is up to four limit values can be allocated to each analog signal. Up to four independent correction and filter calculations can be performed independently on each input module. Programming is done by function block structuring. Observe the boundary conditions for this application. The module is intended to be used with the Process Operator Station (POS30).The module uses 2process interfaces for the power controllers and for the process.

Datasheet Link:

ABB 81EU01F-E GJR2391500R1210.pdf
