ABB 83SR07E-E GJR2392700R1210 Bus Coupling Module For Control System

ABB 83SR07E-E GJR2392700R1210 Bus Coupling Module For Control System

Product Details:

Description:

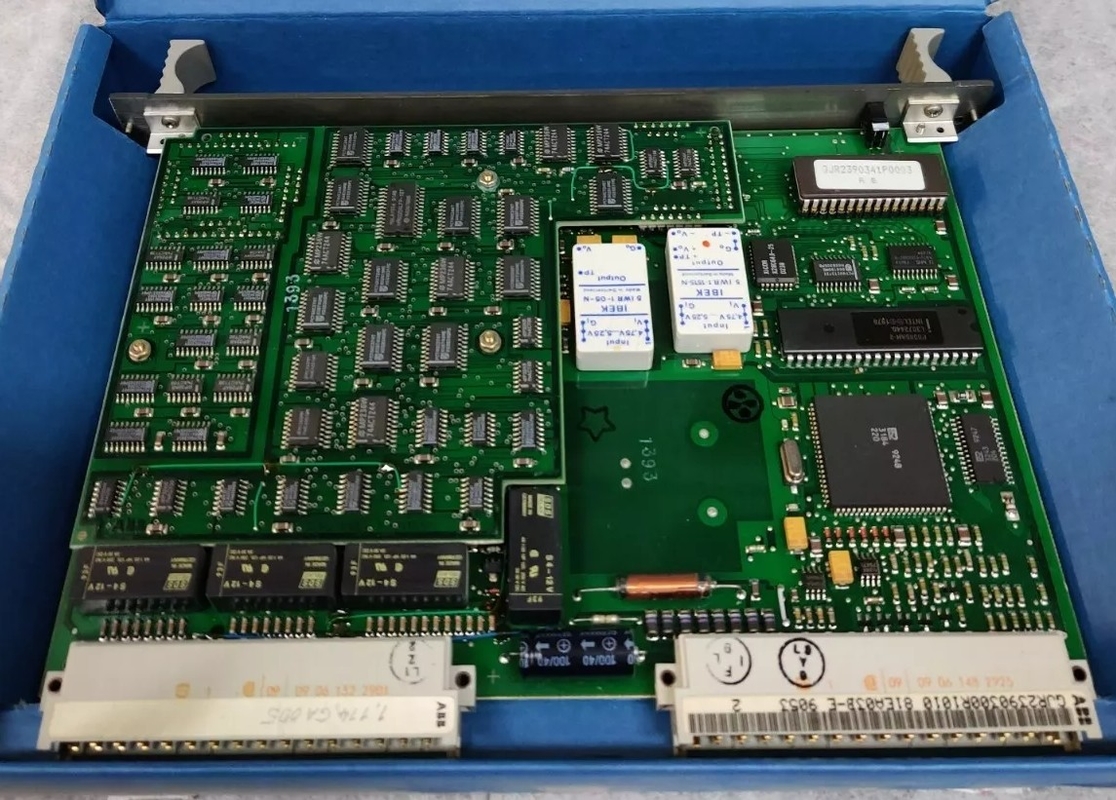

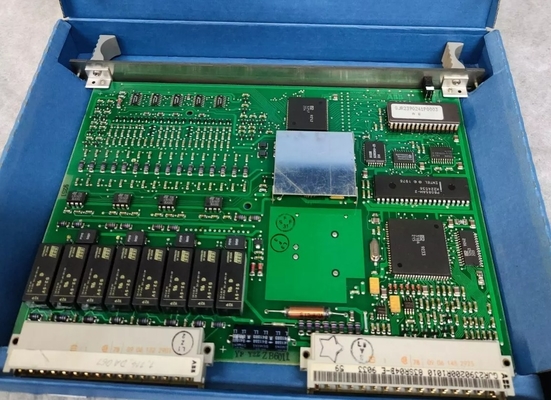

The ABB 83SR07E-E GJR2392700R1210 model belongs to the 83SR series, which includes relays designed for various control and protection applications. The signal exchange between the module and the bus system takes place via a shared memory. Incoming telegrams to be received by the module and calculated function results, which are to leave the module, are buffered. The shared memory has source registers for telegrams to be transmitted and sink registers for telegrams to be received. Register numbers 0 - 63 are defined as source registers, and numbers 64-199 as sink registers.

The ABB 83SR07E-E GJR2392700R1210 is a relay designed for use in industrial automation and control systems. The assignments of the module inputs and outputs to the shared memory registers is determined from the PDDS(programming, diagnosis and display system) on the basis of data supplied by the user. In the address list for module inputs, the source location address of the telegram to be received is allocated to the module input concerned. The limit value list contains 4 limit values for maximally every

16 GRE function blocks (limit signal generation for an analog value). This list is stored in the EEPROM and in the case of RAM mode-in the RAM.

The ABB 83SR07E-E GJR2392700R1210 can handle a maximum current load, making it versatile for both small and large applications. The received telegrams and the generation of the telegrams to be sent as well as the internal signal processing are monitored in the processing section of the module for errorfree operation. In the event of a disturbance, the type of the disturbance is filed in the diagnosis register and a disturbance annunciation is simultaneously sent to the PROCONTROL system. It is also possible to scan the current status of the module and the data at any time from the PDDS.

The ABB 83SR07E-E GJR2392700R1210 is a highly reliable and versatile relay, essential for effective control and automation in industrial settings. Its robust features and ease of integration make it a popular choice among engineers and technicians for ensuring the efficient operation of electrical systems. When the module is put into operation for the first time, there is no user program available. The module signals ”Processing fault” and disturbance light-emitting diodes ST and SG are on.
