The ABB SPIET800 is an INFI-NET to Ethernet transfer module designed to facilitate communication between INFI-NET controllers and a host computer via the TCP/IP protocol over Ethernet. Acting as abridge between the control network and the host computer, it ensures seamless data exchange and monitoring. The SPIET800 module is a high-performance device that integrates advanced control and communication technologies. It is engineered to provide reliable and efficient control and monitoring of industrial processes.

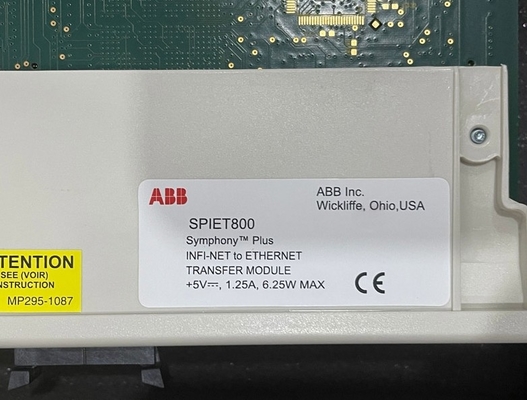

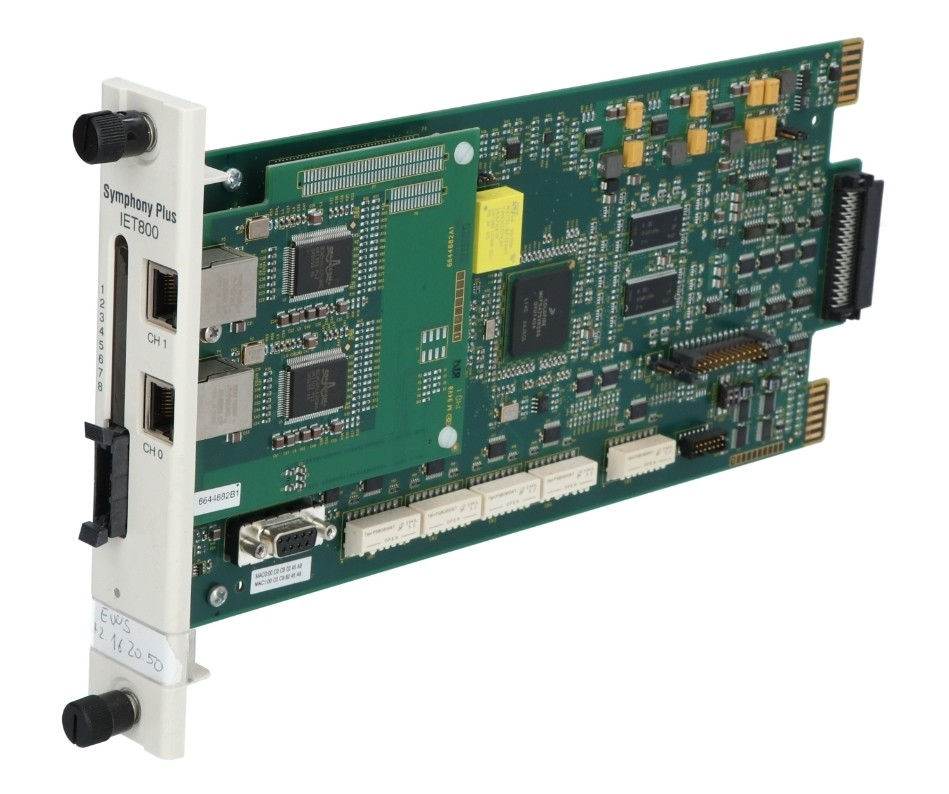

The IET800 module is a single printed circuit board with an Ethernet daughterboard (for Ethernet communication over TCP/IP) mounted on it. The IET800 module occupies one slot in the MMU. The circuit board contains microprocessor based communication circuitry that enables it to directly communicate with its NIS21 module by interfacing to the I/O expander bus. For an IET800 module to communicate with a computer, the communications settings for client applications such as the S+ Engineering: Composer Harmony tool or an HSI must be configured. The Harmony System Configuration (hSysCfg) program is used to configure communications with the IET800 module. This section explains how to configure the IET800 module using the hSysCfg software program.

The IET800 module has three card edge connectors for external signals and power (P1, P2, and P3). Connector P1 connects to common and +5 VDC power. Connector P2 connects the IET800 module to the I/O expander bus to communicate with the NIS21 module. Control and data signals connect from the IET800 module to the host computer. The ABB SPIET800 Ethernet CIU Transfer Module is an integral component of the Symphony Plus control system, specifically designed for enhanced communication and data transfer in industrial automation settings. This module plays a crucial role in interfacing with ABB's legacy systems, such as Bailey Infi 90 and Net 90, ensuring smooth and reliable operation.

The ABB SPIET800 is an Ethernet CIU Transfer Module that provides a secure and reliable connection between an IET800 intelligent electronic transducer (IET) and a remote host. The SPIET800 uses a variety of security features to protect data during transmission, including 128-bit encryption and authentication. It also supports a variety of communication protocols, including Modbus TCP, OPC UA, and Ethernet/IP. The ABB SPIET800 is an INFI-NET to computer transfer module. It enables communication with the host computer using the TCP/IP over Ethernet. It receives data from the controllers over the control network and sorts, organizes and stores this data until the host computer requests it. The SPICI800 is the related computer interface unit bundled kit and contains all the necessary modules, termination units, cables and mounting unit.

Datasheet Link:

ABB SPIET800.pdf
