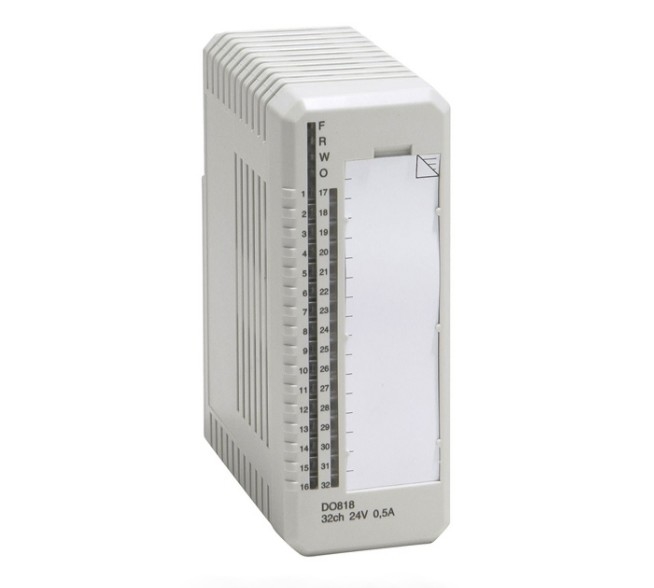

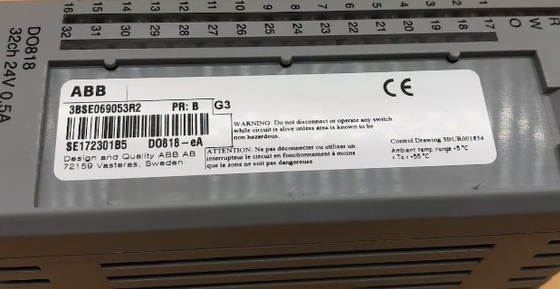

ABB DO818 3BSE069053R1 32 Channel Digital Output 24V Control Module In Stock

ABB DO818 3BSE069053R1 32 Channel Digital Output 24V Control Module In Stock

Product Details:

Additional Information:

Description:

The DO818 is a 32 channel 24 V digital output module for the S800 I/O. This module has 16 digital outputs. The output voltage range is 12 to 32 volt and the maximum continuous output current is 0.5 A. The outputs are protected against short circuits, over voltage and over temperature. The outputs are divided into two individually isolated groups with 16 output channels and one voltage supervision input in each group. Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the ModuleBus.

The ABB DO818 is a 32-channel digital output module designed for use with the ABB Ability System 800xA® control system. It is commonly used in industrial automation and process control applications. The DO818 is a 32 channel 24 V digital output module for the S800 I/O. This module has 16 digital outputs. The output voltage range is 12 to 32 volt and the maximum continuous output current is 0.5 A. The outputs are protected against short circuits, over voltage and over temperature. The outputs are divided into two individually isolated groups with 16 output channels and one voltage supervision input in each group.

Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the Module Bus. ABB DO818 3BSE069053R1 digital output module. Our products are 100% New & Original, fast delivery, low price promotion, One-year Warranty. If you need more information, please contact us.

DO818 is a 32-channel 24 V digital output module for S800 I/O. The module has 16 digital outputs. The output voltage range is 12 to 32 V and the maximum continuous output current is 0.5 A. The outputs are short-circuit, overvoltage and overtemperature protected. The outputs are divided into two individually isolated groups, each with 16 output channels and a voltage monitoring input. Each output channel contains a short-circuit and overtemperature protected high-side driver, EMC protection components, inductive load suppression, output status indication LED and opto-isolator. The process voltage monitoring input gives a channel error signal if the voltage disappears. The error signal can be read via the ModuleBus.

Datasheet Link:

ABB DO818 3BSE069053R1.pdf
