ABB PM866 3BSE050198R1 3BSE050200R1 Redundant Processor Unit Controller Module
Product Details:
| Brand Name |
ABB |
| Model |
PM866 3BSE050198R1 3BSE050200R1 |
| Product ID |
3BSE050198R1 3BSE050200R1 |
| Condition |
New |
| Gross Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin |
Sweden (SE) |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Redundancy |
Yes |
| High Integrity |
No |
| Clock Frequency |
133 MHz |
| Performance, 1000 boolean operations |
0.09 ms |
| Memory |
64 MB |
| RAM available for application |
51.389 MB |
Description:

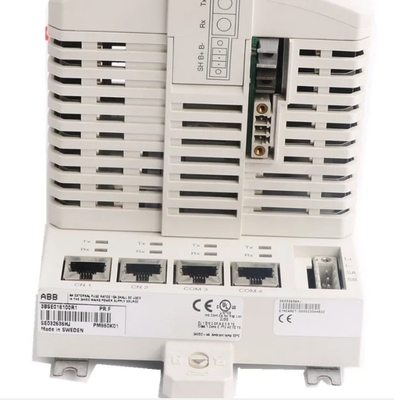

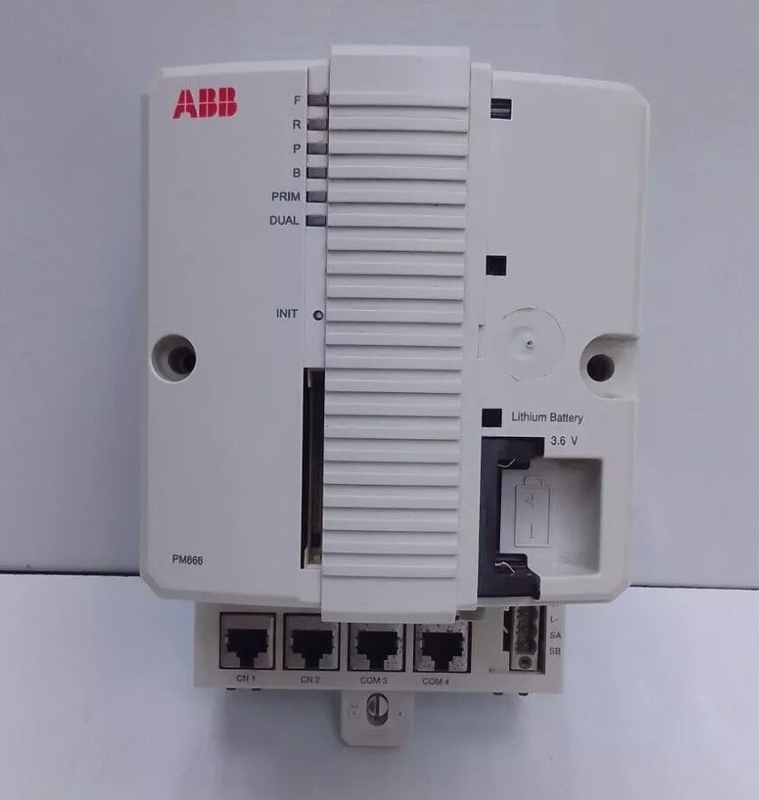

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).
Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate. PM866 is a voltage regulator designed by ABB for small and medium-sized synchronous generators and industrial equipment. The following is a detailed introduction about PM866. The PM866 combines performance control and a simple designed power circuit, making it a powerful small indirect excitation system.
It has built-in support for dual channels and is used for advanced load distribution, rotating diode monitoring, automatic synchronization, and multiple integrated communication options in parallel operating units. IGBT semiconductor devices based on advanced microprocessor technology and allowing for continuous operation with current output up to 10ADC. ABB PM866-2 3BSE050201R1 Field Processor Module is an electronic device for motor protection. The relay is mainly used to monitor the running status of the motor and take protective measures when abnormal conditions are detected to prevent the motor from being damaged.
ABB CPU PM856 AC 800M controller module /Communications Controllers/High quality performance completes the system task. The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. Highly modular and can be built in a near infinite number of ways, from highly centralized to highly distributed.
ABB PM866 is a controller module designed for industrial automation and process control applications. The PM866 controller offers high-performance processing capabilities for executing complex control logic and algorithms. The PM866 controller features multiple communication interfaces, allowing it to connect and communicate with other control devices, monitoring systems, and networks. The 3BSE050201R1 PM866-2 is Processor Unit.Requires configuration according to Safety Manual.S800 I/O is an open comprehensive, distributed, process I/O system that communicates with controllers by direct connection or over industry-standard field buses.
Datasheet Link:
ABB PM866K01 3BSE050198R1.pdf
