Product Details:

Description:

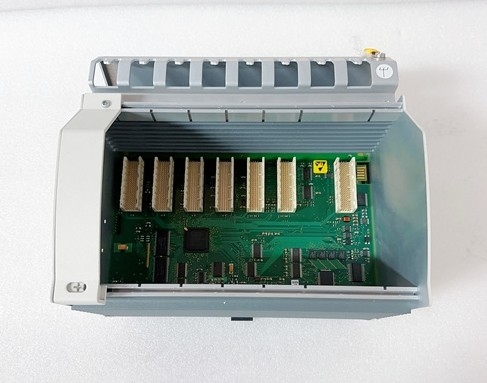

The PM 803F Base Unit of AC 800F consists of a housing and a CPU main board. This unit can be equipped with various modules. Comes without operating system. The operating system has to be loaded during software installation. With special Contact Ledge RW 855F. Software V7.1SP2a or higher is mandatory. Restrictions: The performance of PM 803F is 5 - 10% below the performance of PM 802F (Obsolete). Conquer demanding automation tasks with the ABB PM803F, your industrial control powerhouse. This base unit packs a punch with 16 MB of RAM and battery-buffered capabilities, ensuring reliable performance even in harsh environments and power outages.

The ABB PM803F 3BDH000530R1 controller is a high performance controller designed for industrial applications. It is highly reliable and provides precise control of a variety of processes. ABB PM803F is a power monitoring relay from ABB, a leading global supplier of electrical products, robotics, and automation solutions. This relay is designed for monitoring and protecting electrical power systems, offering comprehensive protection and monitoring features.

The PM803F is a base unit for the ABB AC 800F Freelance control system. It consists of a housing and a CPU main board. The CPU main board contains a 16 MB battery-buffered RAM, a 32-bit microcontroller, and a number of I/O ports. The PM803F can be equipped with a variety of modules, including analog input modules, digital input modules, analog output modules, and digital output modules. The PM803F can also be connected to a variety of field devices, such as motors, sensors, and valves.

The ABB PM803F 3BDH000530R1 base unit is commonly used in various industrial automation applications, including control and monitoring systems for power plants, manufacturing processes, and building automation. The PM803F base unit is a reliable and versatile controller that provides advanced control and monitoring capabilities. It offers a wide range of communication options and can be easily integrated into existing automation systems. With its robust design and high-performance features, it is suitable for demanding industrial environments.

AC800F controller board ABB PM802F/ABB PM803F has 6 slots and 1 power slot, of which 2 slots use fast DMA technology to directly communicate with the CPU for high-speed data, and these 2 slots are inserted into Ethernet modules to realize the information transmission of the control layer based on standard TCP/IP Ethernet. The PM803 motherboard increases the storage capacity of the main memory to 16MB, and implements the large-capacity control program on the AC800F controller. But the corresponding program keeps the device updated.

Datasheet Link:

ABB PM803F 3BDH000530R1.pdf
