ABB DP840 3BSE028926R1 Pulse Counter Frequency Measurement Module

ABB DP840 3BSE028926R1 Pulse Counter Frequency Measurement Module

Product Details:

Additional Information:

Description:

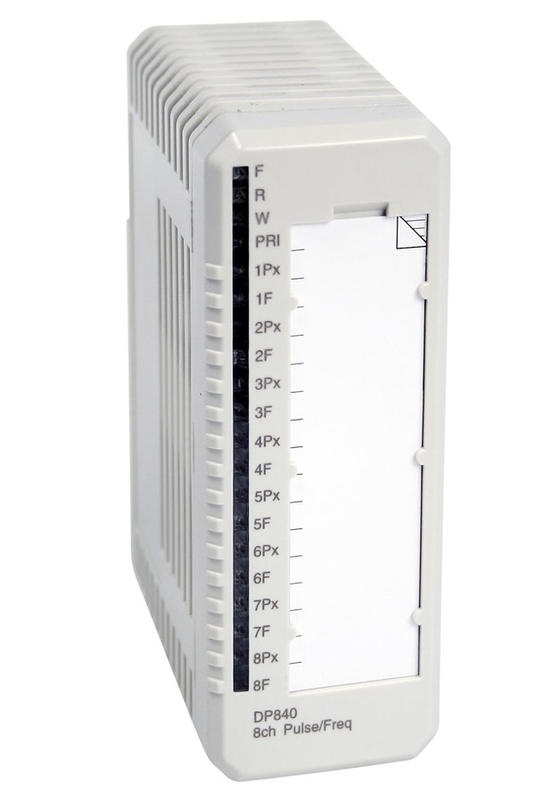

The DP840 module consists of 8 identical independent channels. Each channel can be used for pulse count or frequency (speed) measurement, maximum 20 kHz. The inputs can also be read as DI signals. Each channel has a configurable input filter. The module perform self-diagnostics cyclically. With advanced diagnostics, for single or redundant applications. Interface for NAMUR, 12 V and 24 V. The input can be read as digital input signals. Use DP840 with Module Termination Units TU810V1, TU812V1, TU814V1, TU830V1, TU833.

The ABB DP840 is an 8-channel pulse counter module belonging to the ABB S800 I/O system. It's designed for use with ABB S800 Programmable Logic Controllers (PLCs) and controllers for industrial automation applications. Counts electrical pulses generated by external devices like sensors or encoders. These pulses can represent various process parameters like speed, position, or flow rate. The DP840 converts these pulses into digital signals that the PLC or controller can understand and utilize for control purposes.

The ABB DP840 Power Supply Module delivers consistent, high-quality power to industrial control systems, ensuring stable operation in demanding environments. The DP840 module consists of 8 identical independent channels. Each channel can be used for pulse count or frequency (speed) measurement, maximum 20 kHz. The inputs can also be read as DI signals. Each channel has a configurable input filter. The module perform self-diagnostics cyclically. With advanced diagnostics, for single or redundant applications. Interface for NAMUR, 12 V and 24 V. The input can be read as digital input signals.

ABB S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard fieldbus technology and therefore can be used with a wide range of process controllers from ABB and other vendors. The ABB DP820 has 8 channels and the modules can be used in both single and redundant applications, interface for NAMUR, 12 V and 24 V transducer signal levels, each channel can be configured for pulse count or frequency measurement. The inputs can also be read as DI signals and pulse count by accumulation in a 16 bit counter. Frequency (speed) measurement 0.5 Hz - 20 kHz, advanced on-board diagnostics.

The ABB DP840 3BSE028926R1 Pulse Counter is a high-precision industrial measuring device designed for critical applications requiring accurate pulse counting and control. The ABB DP840 Power Supply Module is designed to meet the stringent demands of industrial control systems. It ensures reliable power delivery, which is critical for the smooth operation of automation processes. Featuring a compact design and lightweight construction, this module is easy to integrate into existing control systems without compromising on performance. Its robust build quality withstands harsh industrial conditions, making it a durable choice for long-term reliability.

Withstanding high insulation voltages, the DP840 is equipped to handle the electrical stresses typical in industrial environments. This feature contributes to its longevity and safety in operational use. Equipped with advanced circuitry, the DP840 offers efficient power management and minimizes energy loss. This not only enhances system performance but also contributes to energy savings over time, aligning with sustainability goals in modern industrial operations.

Datasheet Link:

ABB DP840 3BSE028926R1.pdf
