Product Details:

Description:

The TU847 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A. The MTU is a passive unit having connections for power supply, electrical ModuleBus, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU847 via TB806. Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. TU847 is also available in a G3 compliant version.

The primary function of the TU847 3BSE022462R1 is to facilitate the connection of additional non-redundant I/O modules to the CI840 control system. This allows for expanding the system's capacity to handle more sensors and actuators within an industrial automation setup. It's typically used in various industrial applications, including manufacturing, assembly lines, material handling, and building automation, where the CI840 system serves as the central controller.

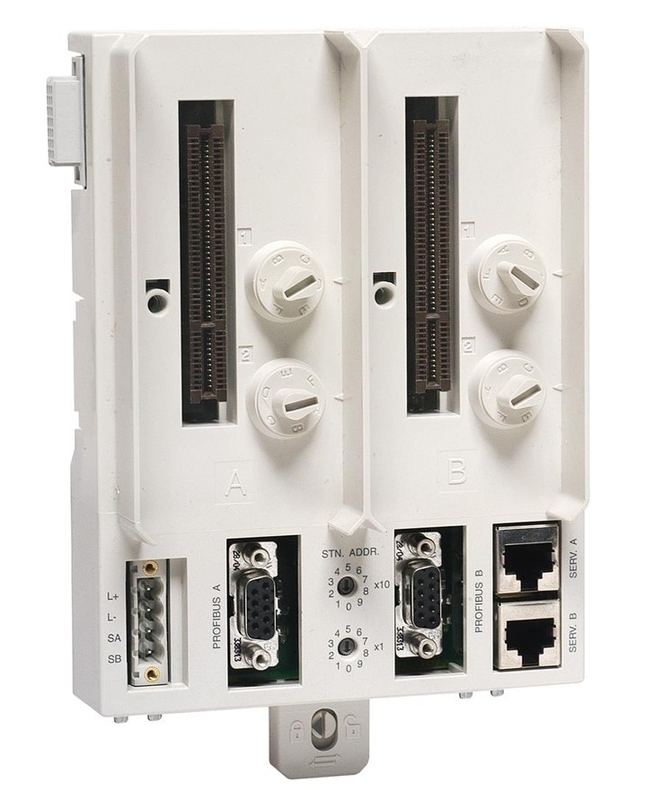

The ABB TU847 has a power supply connection; two PROFIBUS connections; two service tool connections.; two rotary switch for station address setting; Module Bus connections and connector for Module Bus Optical Port.TU847 mechanical keying prevents insertion of the wrong module type; latching device to DIN rail for locking and grounding; DIN rail mounted. The TU847 is a module termination unit designed for redundant configurations, specifically with theCI840/CI840A field communication interfaces. It's a passive unit that supports various connections and settings for flexibility in installation.

The ABB TU847 3BSE022462R1 is a sophisticated input/output module designed for integration within the ABB 800xA control system. This module is essential for managing field device interactions in various industrial automation applications, including power generation, oil and gas, and manufacturing processes. The TU847 serves as a communication bridge between the control system and field devices, facilitating the monitoring and control of numerous industrial processes. It is particularly valued for its flexibility and robustness, allowing for seamless integration into existing control architectures.
