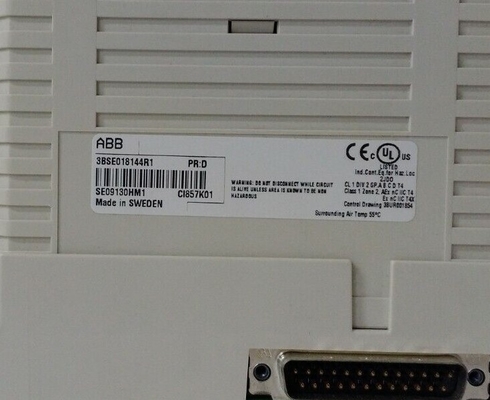

ABB CI857K01 3BSE018144R1 INSUM Ethernet Communication Interface Module

ABB CI857K01 3BSE018144R1 INSUM Ethernet Communication Interface Module

Product Details:

Description:

ABB CI857K01 3BSE018144R1 Central Processing Unit Central Processing Unit (Central Processing Unit), referred to as CPU, is the computing core and control core of a computer launched in 1971. It is the final execution unit for information processing and program execution. The central processing unit includes arithmetic logic components, register components and control components, etc., and has functions such as processing instructions, executing operations, controlling time, and processing data. CPU includes arithmetic logic components, register components and control components, etc.

INSUM integration into AC 800M supports higher functionality integration, multidrop configurations, time distribution and time stamping in the switchgear, and utilizes standard Ethernet technology for longer communication distances. The speed of this solution is typically 500 ms for one closed loop (indication from one motor until operation of another, assuming 250 ms cycle time in control execution). 3BSE018144R1 CI857K01 is a high-performance processor unit designed specifically for the System 800xA distributed control system.

The 3BSE018144R1 CI857K01processor unit has the following main features: It is equipped with a robust multi-core processor and a lot of RAM, which can handle multiple tasks together and quickly process a lot of data, satisfying the needs of various industrial control applications. The processor has built-in redundancy function, which ensures high availability and reliability of the system even in the event of hardware defects.

Communication talent: It supports multiple communication protocols such as Ethernet, Profibus, and Modbus, facilitating communication with various I/O modules and other device interfaces.

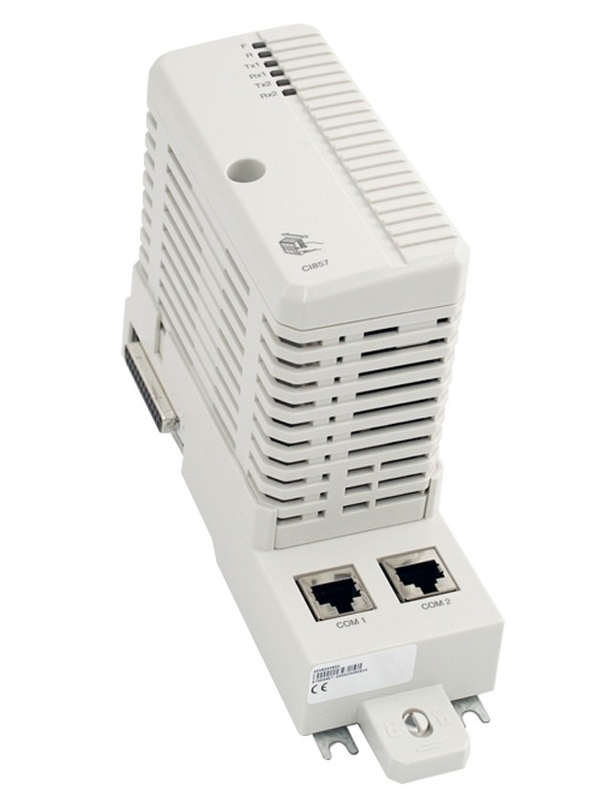

The ABB CI857K01 Ethernet Interface Module is designed for use in industrial automation systems. It provides a reliable and high-speed Ethernet communication interface for connecting various devices and components within a control system. The CI857K01 module allows for easy integration and communication between different devices, such as controllers, I/O modules, and operator panels. It supports TCP/IP communication protocol and offers a data transfer rate of 10/100 Mbps. With two Ethernet ports, it enables flexible and redundant network configurations.

TheCI857K01 3BSE018144R1 processor unit is widely used in various jobs such as oil and gas, power generation, chemical processing, power systems, metal processing,

food and beverage, pharmaceuticals, papermaking, textiles, cars, railways, and ships, satisfying the needs of chaotic control and automation applications. This processor unit has advanced diagnosis and defect cleaning functions, including comprehensive work log recording and a built-in web server for remote access and monitoring, which helps to quickly identify and handle potential issues.

Datasheet Link:

ABB CI857K01 3BSE018144R1.pdf
