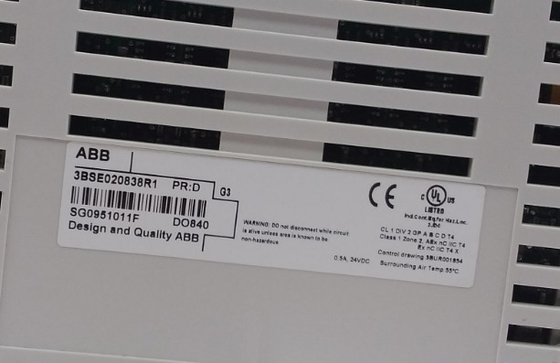

ABB DO840 3BSE020838R1 Digital Output Module 24V S/R 16 Channel S800 I/O Module

ABB DO840 3BSE020838R1 Digital Output Module 24V S/R 16 Channel S800 I/O Module

Product Details:

Additional Information:

Description:

This module has 16 digital outputs. The maximum continuous output current per channel is 0.5 A. The outputs are current limited and protected against over temperature. The outputs are divided into two groups with eight output channels and one voltage supervision input in each group. Each output channel consists of a current limited and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier.

The ABB DO840 3BSE020838R1 is a digital output module built for industrial automation. It controls 16 individual channels, each providing a 24V DC signal. This module is ideal for switching on/off devices like lamps, motors, and valves. Two groups of eight channels offer isolated control, preventing electrical interference. The DO840 features advanced diagnostics to monitor module health and detect potential issues. For easy installation, it requires a separate ABB termination unit (TU810, TU812, etc.).

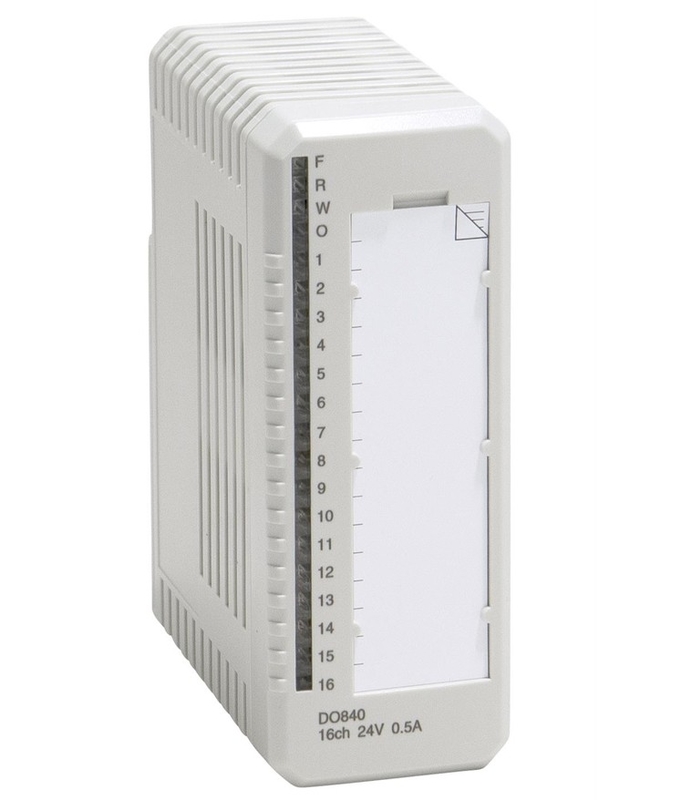

The ABB DO840 Module is a 16 channel 24 V digital output module for single or redundant application. This module has 16 digital outputs. The maximum continuous output current per channel is 0.5 A. The outputs are current limited and protected against over temperature. The outputs are divided into two groups with eight output channels and one voltage supervision input in each group.In addition to the four module LEDs, DO840 has one LED (Yellow/Red) per channel (16) that indicate output state and channel error (Yellow = output is energized, Off = output is de-energized, Red = channel error).DO840 is installed with TU830/TU833 Extended MTU Process Connections and is installed on a TU830/TU833 Extended MTU.

The ABB DO840 digital output module is a reliable and high-performance product designed to provide efficient control and monitoring in various industrial applications. Moreover, it offers advanced features that enhance industrial processes. The DO840 module enables precise control and flexibility for industrial processes, leading to improved efficiency. This module ensures stable operation and withstands harsh environmental conditions, ensuring reliable performance. The module easily integrates with existing systems and equipment, allowing for seamless implementation. It allows for easy expansion and customization according to specific requirements, providing flexibility. The module provides real-time status updates, enabling enhanced operational visibility and control.

Datasheet Link:

ABB DO840 3BSE020838R1.pdf
