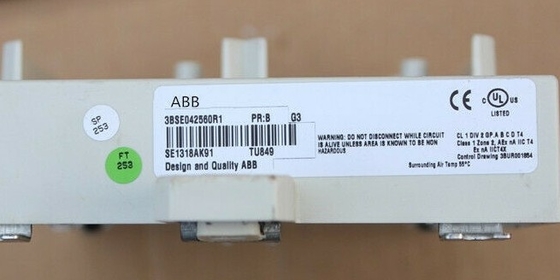

ABB TU849 3BSE042560R1 Module Termination Unit

ABB TU849 3BSE042560R1 Module Termination Unit In Stock Brand New

Product Details:

Additional Information:

Description:

The TU849 is a module termination unit (MTU) for redundant configuration of Optical ModuleBus Modem TB840/TB840A. The MTU is a passive unit having connections for double power supply, one for each modem, a single electrical ModuleBus, two TB840/TB840A and a rotary switch for cluster address (1 to 7) setting. Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. The configurations can be changed with a screwdriver.

The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be locked/unlocked with a screwdriver. Termination unit TU848 has individual power supply connections and connects TB840/TB840A to redundant I/O. Termination unit TU849 has individual power supply connections and connects TB840/TB840A to non-redundant I/O. In terms of design and manufacturing, ABBTU849 3BSE042560R1 uses high-quality materials and manufacturing processes to ensure that it can operate stably in various harsh industrial environments. Its sturdy and durable shell design can effectively resist the influence of adverse factors such as dust and moisture, ensuring the long-term reliability of the equipment.

ABB TU849 3BSE042560R1 S800 I/O communication module. ABB S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs via industry-standard fieldbus technology. The TU849 is a module termination unit (MTU) for redundant configuration of Optical ModuleBus Modem TB840/TB840A. The MTU is a passive unit having connections for double power supply, one for each modem, a single electrical ModuleBus, two TB840/TB840A and a rotary switch for cluster address (1 to 7) setting.

ABB S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers over industry-standard fieldbus technology and therefore can be used with a wide range of process controllers from ABB and other vendors. This indicates that the TU849 is specifically designed to work with two TB840 modems in a redundant configuration. Each TU849 has its own power supply, ensuring reliable operation even if one of the modems fails. The TU849 can be used with both redundant and non-redundant I/O systems, providing flexibility in system design.

In terms of functions, ABB TU849 3BSE042560R1 has powerful communication and connection capabilities. It can support a variety of communication protocols and interface standards, so that various devices in the industrial automation system can be seamlessly connected to achieve real-time data transmission and sharing. At the same time, the termination unit also has high compatibility and scalability, and can be connected with industrial automation equipment of different brands and models to meet the diverse needs of users.

In addition, ABB TU849 3BSE042560R1 also has easy installation and maintenance points. Users can configure and install according to actual needs without complicated operating steps. At the same time, the termination unit also provides detailed fault diagnosis and maintenance guides to facilitate users to carry out daily maintenance and maintenance. In general, ABB TU849 3BSE042560R1 is a powerful, stable and easy-to-use industrial automation termination unit. It can meet the various needs of industrial automation systems for communication and connection, and improve the overall operation efficiency and quality.

Datasheet Link:

ABB TU849 3BSE042560R1.pdf
