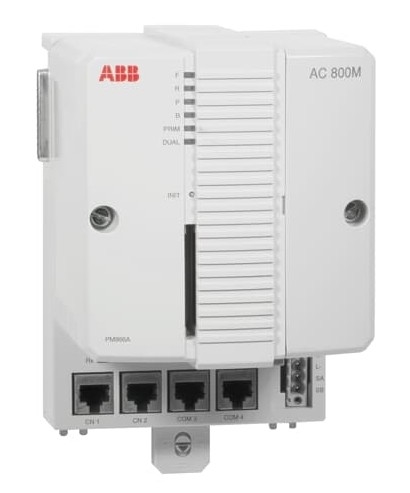

ABB PM866AK01 3BSE076939R1 Control Processor Unit For AC 800M Controllers

ABB PM866AK01 3BSE076939R1 Control Processor Unit For AC 800M Controllers

Product Details:

Description:

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.

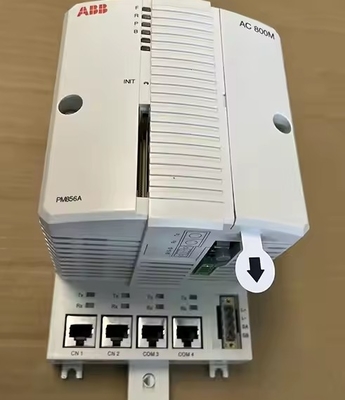

The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. ABB AC 800M controller is a family of rail-mounted modules, consisting of CPUs, communication modules, power supply modules and various accessories. Several CPU modules are available that vary in terms of processing power, memory size, SIL-rating, and redundancy support. Each CPU module is equipped with two Ethernet ports for communication with other controllers and for interaction with operators, engineers, managers, and higher level applications. A Flash memory card can be inserted into a slot in the CPU module to store the application and data.

The ABB PM866AK01 3BSE076939R1 Processor Unit is the heart of the ABB 800xa system. It is a powerful and reliable processor unit that ensures efficient and smooth operation of your industrial processes. The ABB PM866AK01 3BSE076939R1 Processor Unit is a type 1 unit, which means it is designed for high-performance and high-speed industrial processes. The ABB PM866AK01 3BSE076939R1 Processor Unit offers high availability with its redundant design, ensuring uninterrupted operation of your industrial processes even in case of a failure.

ABB PM866AK01 3BSE076939R1 is a PLC (Programmable Logic Controller) processor unit module used in industrial automation and control systems. It is an important product of ABB and is widely used in various industrial scenarios to achieve accurate control of various equipment and process. This processor unit module has a high-performance microprocessor and rich input and output interfaces, supports multiple communication protocols, and can be seamlessly connected with other devices and systems. It also has high reliability and stability, and can operate stably for a long time in various harsh industrial environments.

Datasheet Link:

ABB PM866AK01 3BSE076939R1.pdf
