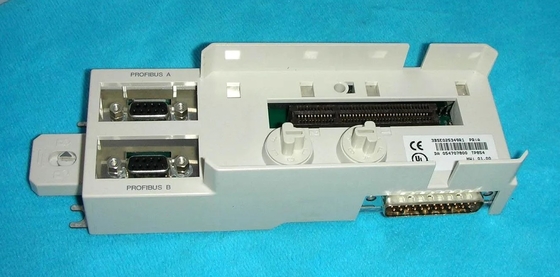

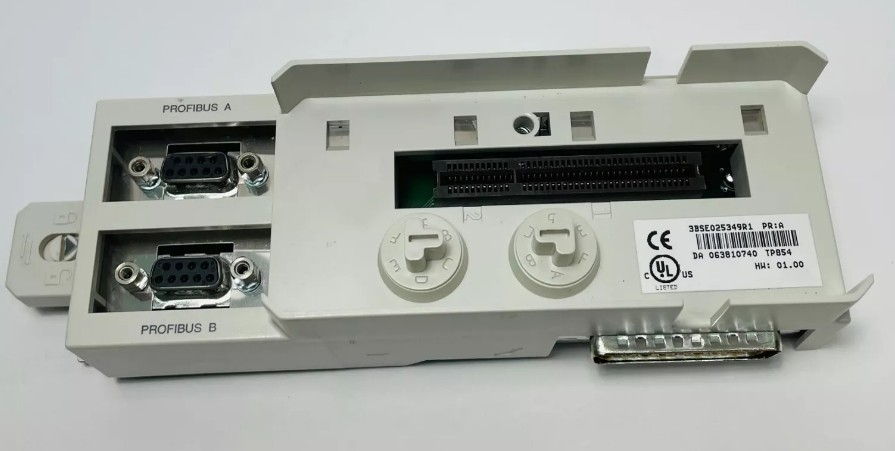

TP854 is designed as ABB 800xA control system Baseplate Unit. The Baseplate TP854 has two female DB9 connectors for connecting PROFIBUS DP with support of line redundancy. The baseplate has a code lock, that prevents the installation of an incorrect type of unit onto the TP854 Baseplate. The ABB TP854 3BSE025349R1 is a baseplate for the CI854 communication interface module. The ABB TP854 3BSE025349R1 is a transformer package from ABB, a leading manufacturer of power and automation technology. Transformers are used in electrical power distribution systems to increase or decrease the voltage levels of alternating current (AC) power. The TP854 transformer package is designed for safe and efficient operation in industrial and commercial applications.

PROFIBUS DP is a high speed multipurpose bus protocol (up to 12Mbit/s) for interconnecting field devices, like remote I/O, drives, low voltage electrical equipment, and controllers. PROFIBUS DP can be connected to the AC 800M via the CI854A communication interface. The Classic CI854A includes two PROFIBUS ports to realize line redundancy and it also supports PROFIBUS master redundancy. The CI854B is the new PROFIBUS-DP master that replaces CI854A in new installations.

ABB offers various communication modules for connecting Advant 800xA systems to different industrial networks, including PROFIBUS DP. Consider exploring their current product catalog for suitable replacements with improved features and support compared to potentially legacy modules. Contacting ABB customer support through their website or by phone might be the most effective way. They can clarify the module’s function and suggest compatible replacements from their current offerings.

The DP-V1 interface is a PROFIBUS DP communication interface that allows the AC 800M controller to communicate with PROFIBUS DP slaves. One of the main functions of the base is to provide stable support for the equipment to ensure that the equipment does not tilt, shake or move during use. It is able to withstand the weight and vibration of the equipment. Some base designs have shock and vibration reduction functions, which can reduce the impact of vibration and shock from the external environment on the equipment and improve the performance and reliability of the equipment.

The base is usually specially treated to prevent corrosion and improve durability. This is especially important for long-term use of the equipment and applications in harsh environments. Some bases allow height or tilt angle adjustment to meet the needs of different applications, ensuring the appropriate position and angle of the equipment. The base may have integrated cable management, power interface, cooling system and other accessories to simplify the installation and maintenance of the equipment.
