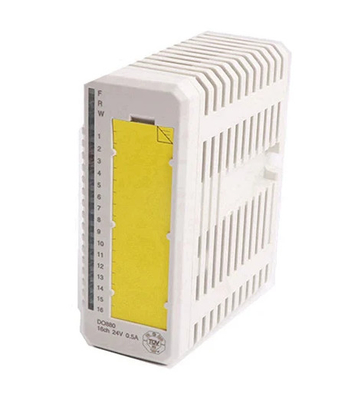

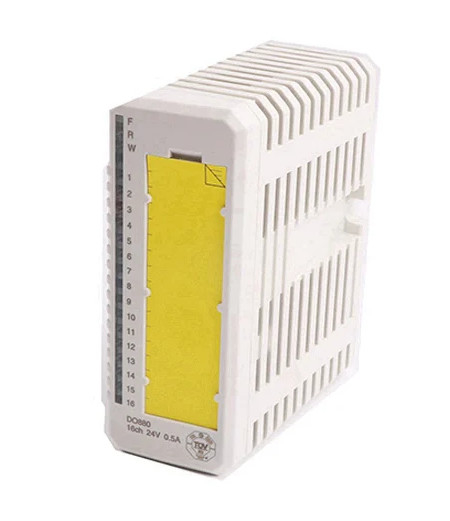

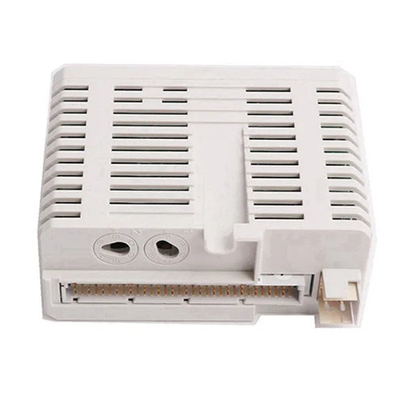

ABB DO880 3BSE028602R1 24 V Digital Output Module HI S/R 16 Channel Module

ABB DO880 3BSE028602R1 24 V Digital Output Module HI S/R 16 Channel Module

Product Details:

Description:

The DO880 is a 16 channel 24 V digital output module for single or redundant application. The maximum continuous output current per channel is 0.5 A. The outputs are current limited and protected against over temperature. Each output channel consists of a current limited and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and an isolation barrier to the Modulebus.

The D0880 is a 16-channel digital output module designed for both single and redundant applications. It operates with a 24 V d.c. signal and is equipped to handle a maximum continuous output current of0.5 A per channel. The module features current limiting, over-temperature protection, and robust protection components.

This module features 24V d.c., 0.5A Outputs with high integrity. It is certified for SIL3 and can be used in both single and redundant configurations. Configuration must be done according to the Safety Manual. The ABB DO880 3BSE028602R1 module, nicknamed the "DO880," is a powerhouse for controlling 16 separate outputs. Each channel pumps out 24 volts DC current, strong enough for heavy-duty tasks. You can choose single or redundant operation, making the DO880 ultra-reliable.

Built for safety, the DO880 boasts SIL3 certification, meaning it can handle critical operations without fail. Plus, it's isolated to protect your system from ground faults. The DO880 can drive signals up to 600 meters away. And, its compact size fits neatly into tight spaces. The DO880 is a 16 channel 24 V digital output module for single or redundant application. The maximum continuous output current per channel is 0.5 A. The outputs are current limited and protected against over temperature. Each output channel consists of a current limited and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and an isolation barrier to the Modulebus.

The ABB DO880 3BSE028602R1 is a digital output module designed for use within ABB's 800xA control systems and other compatible automation platforms. This module plays a critical role in controlling various processes by providing reliable digital output signals to field devices. The DO880 module typically features multiple digital output channels that can operate at various voltage levels, providing the capability to control actuators, relays, and other devices in industrial applications.

The module is designed for high-speed operation, ensuring timely response to control commands, which is crucial for maintaining process efficiency and safety. As part of a modular system, the DO880 can be easily integrated into existing setups, allowing for flexible configuration based on specific project requirements. This modularity aids in reducing downtime during installation and maintenance.

Datasheet Link:

ABB DO880 3BSE028602R1.pdf
