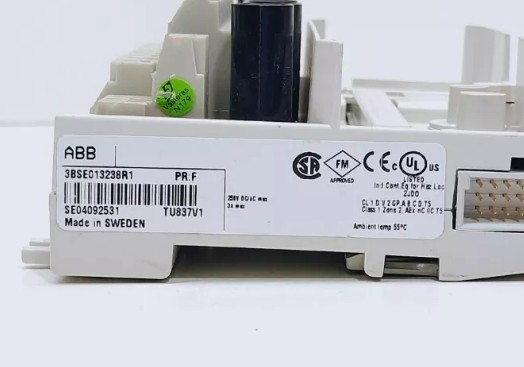

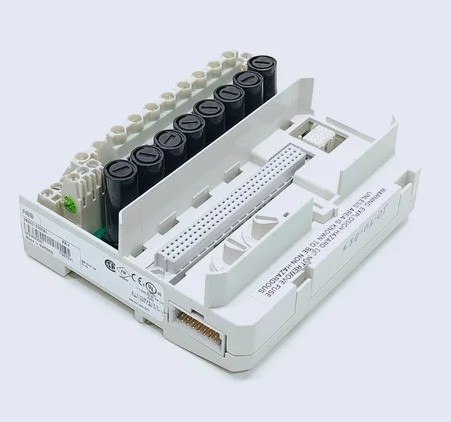

ABB TU837V1 3BSE013238R1 Extended Module Termination Unit 8x1 Fused Isol. Signals

ABB TU837V1 3BSE013238R1 Extended Module Termination Unit 8x1 Fused Isol. Signals

Product Details:

Description:

The TU837V1 MTU can have up to 8 I/O channels. The maximum rated voltage is 250 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be released with a screwdriver. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.

ABB's TU837V1 3BSE013238R1 is an Extended Module Termination Unit (MTU) for their 800xA control system. It's an I/O module with eight fused isolated signal channels and eight logic terminals. It can also handle up to six neutral terminals. Each channel can handle a maximum voltage of 250 volts and a maximum current of 3 amps. This MTU is designed to terminate and isolate signals within the 800xA system.

With its high-quality materials and advanced manufacturing processes, the ABB TU837V1 guarantees optimal performance and reliability. It is meticulously tested to meet stringent industry standards, providing you with peace of mind in your automation projects. Featuring 8 channels, this terminal block offers versatile connection options, allowing for the flexible configuration of your control system. Whether you’ re managing signal lines or power distribution, the ABB TU837V1 adapts effortlessly to your specific needs.

The TU837V1 MTU has been designed to be connected and communicate data and information via a network interface which should be connected to a secure network. It is the sole responsibility of the person or entity responsible for network administration to ensure a secure connection to the network and to take the necessary measures (such as, but not limited to, installation of firewalls, application of authentication measures, encryption of data, installation of anti virus programs, etc.) to protect the product and the network, its system and interface included, against any kind of security breaches, unauthorized access, interference, intrusion, leakage and/or theft of data or information. ABB is not liable for any such damages and/or losses.

Datasheet Link:

ABB TU837V1 3BSE013238R1.pdf
