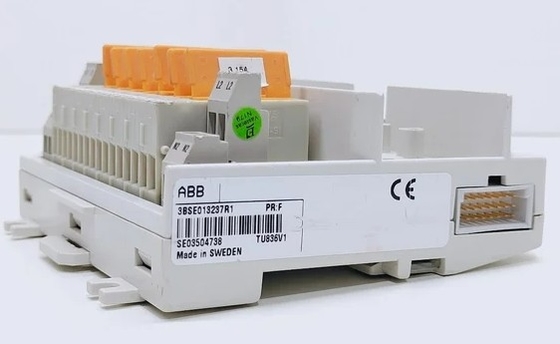

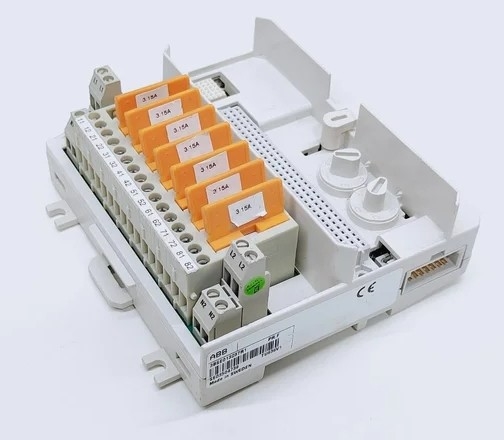

ABB TU836V1 3BSE013237R1 Extended Module Termination Unit 250V Fused

ABB TU836V1 3BSE013237R1 Extended Module Termination Unit 250V Fused

Product Details:

Description:

The TU836V1 MTU can have up to 8 I/O channels. The maximum rated voltage is 250 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

The ABB TU836V1 3BSE013237R1 is an 8-channel input module for the ABB S800 I/O DCS. It supports a variety of input signals, including digital, analog, and temperature. The TU836V1 3BSE013237R1 is ideal for a wide range of industrial automation applications, including process control, machine automation, and building management.

ABB S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard fieldbus technology and therefore can be used with a wide range of process controllers from ABB and other vendors. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail.

The ABB TU836V1, identified by the part number 3BSE013237R1, is a versatile terminal unit designed for use within ABB’s 800xA and other compatible control systems. This module is integral to managing I/O connections and facilitating communication between field devices and control systems. The TU836V1 features a modular architecture that allows for flexible configuration and easy integration into existing systems.

The TU836V1 features a modular architecture that allows for flexible configuration and easy integration into existing systems. It provides multiple connection points for wiring field devices, enabling efficient signal routing and management. This terminal unit is compatible with various ABB I/O modules, ensuring seamless integration and functionality within the control environment. It supports both digital and analog signals, making it suitable for a wide range of applications.

Datasheet Link:

ABB TU836V1 3BSE013237R1.pdf
