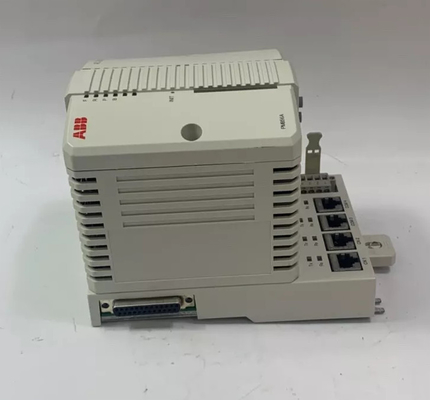

ABB PM856AK01 3BSE066490R1 Processor Unit PLC AC 800M Controller Module

ABB PM856AK01 3BSE066490R1 Processor Unit PLC AC 800M Controller Module

Product Details:

Description:

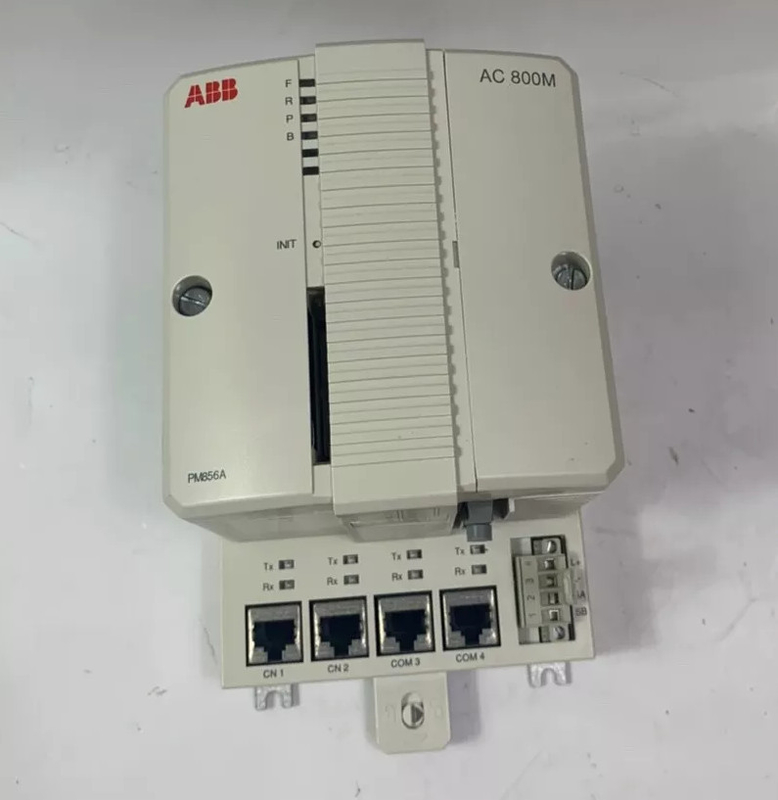

PM856AK01 is a processor unit that belongs to the AC 800M family of rail-mounted modules. It is a CPU module that contains the microprocessor, RAM memory, real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM856AK01 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). It is available with 16 MB of memory and a clock frequency of 24 MHz.

Our solutions are broadly acknowledged and dependable by users and may meet consistently developing economic and social requires for Abb Dsdp 170 57160001-Adf , Abb Dapi 100 3ast000929r109 , 07KT97 GJR5253000R0200 , All products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. Welcome customers new and old to contact us for business cooperation. The base plate of the PM856A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool.

The PM856AK01 module is a programmable automation controller designed for high availability of control applications in process industries. A rich library of function blocks includes several types of control loops, including advanced control and auto-tuning functions, as well as the integration of ABB drives and motors. Controller communication via Ethernet includes on-board RNRP redundancy as well as a wide set of communication modules to connect to third-party devices. The superior redundancy concept allows fast switching times and topologically separated cpu modules. There are several CPU modules available, varying in processing power, memory size and redundancy support. Priority-controlled, time-based tasks allow the highest stability, even for complex control tasks.

Compact Control Builder supports standard IEC 61131-3 programming languages ​​and is a tool for designing control code and hardware layout for AC 800M. It creates logic, sequential and analog control-intensive automation solutions for all existing controllers in the automation system handled in one database. Flash cards allow loading of applications without the need to utilize engineering tools to support OEM and remote solutions.

Each controller has many different I/O options available. Some I/O requirements add a standard that includes acceptable discrete voltage levels, analog signal levels, and special modules. For discrete signals, a good standard is 24 V DC or 120 V AC for both inputs and outputs. Standards for analog signal levels should also be specified, such as 4-20 mA. Special modules such as resistance temperature detectors (RTDs), thermocouples, and weigh scale modules should also be included in the standard.

Datasheet Link:

ABB PM856AK01 3BSE066490R1.pdf
