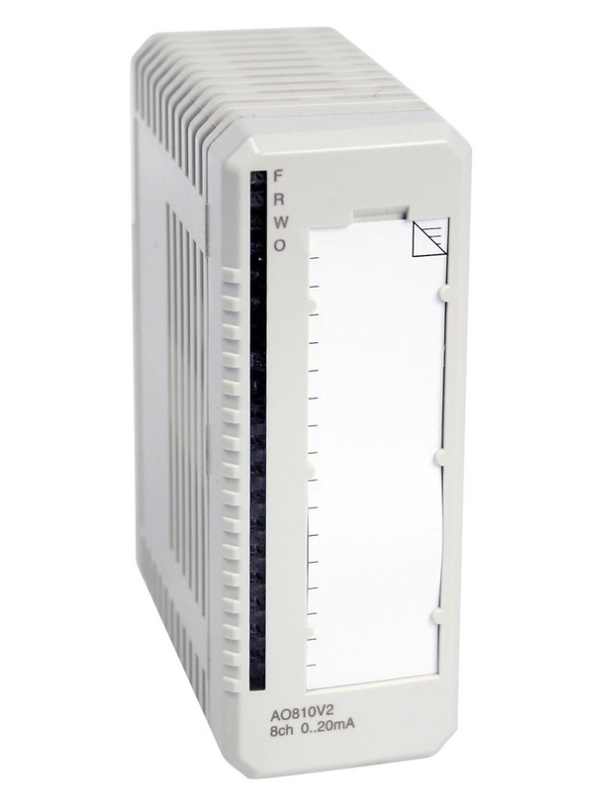

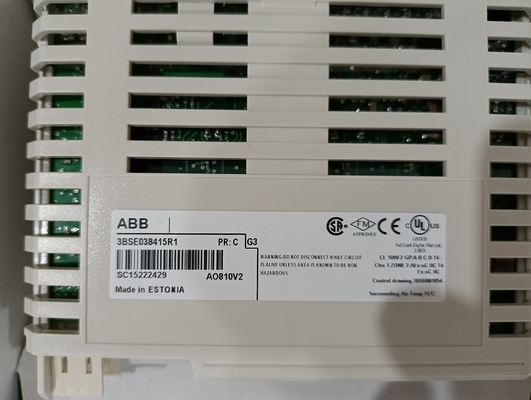

ABB AO810V2 3BSE038415R1 Analog Output Module S800 I/O Module 8 Channels

ABB AO810V2 3BSE038415R1 Analog Output Module S800 I/O Module 8 Channels

Product Details:

Description:

The AO810V2 Analog Output Module has 8 unipolar analog output channels. To supervise the communication to the D/A-converters the serial data is read back and verified. The open circuit diagnostic is received during the readback. The module performs self-diagnostic cyclically. The module diagnostics includes process power supply supervision, which is reported when supply voltage to output circuitry is to low. The error is reported as a channel error. The channel diagnostic includes fault detection of the channel (only reported on active channels). The error is reported if the output current is less than the output set value and the output set value is greater than 1 mA.

The AO810V2 analog output module has eight unipolar analog output channels. To supervise the communication with the D/A converter, the serial data is read back and verified. An open circuit diagnostic is received during the read back. The module cycles through self-diagnostics. Module diagnostics include process power monitoring, which reports when the power supply voltage to the output circuit is too low. This error is reported as a channel error. Channel diagnostics include channel fault detection (reported only on active channels). Output current is less than the output set point, and an error is reported when the output set point is greater than 1mA.

The ABB A0810V2 is an 8-channel analog output module designed for the S800 I/O system. It offers arobust solution for industrial applications, providing high-performance analog outputs in demanding environments. The module supports both voltage and current output options with precise control and high reliability.

ABB is a leading global technology company that energizes the transformation of society and industry to achieve a more productive, sustainable future. By connecting software to its electrification, robotics, automation and motion portfolio, ABB pushes the boundaries of technology to drive performance to new levels. With a history of excellence stretching back more than 130 years, ABB’s success is driven by about 110,000 talented employees in over 100 countries.

The arc flash is one of the most dangerous incidents in electrical installations that could cause severe harm to people and equipment involved. When an arc flash occur, time until arc interruption is one of the most critical factors since it is directly proportional to the amount of energy released. The are flash incident energy will in turn determine how much damage an arc flash will cause.

ABB is a leader in electrical safety with the TVOC-2 Arc Guard System providing an unrivaled optical arc flash mitigation device with the fastest reaction time on the market. The TVOC-2 detects the light from an occurring arc flash and sends the signal to the breaker within 1 ms. Together with ABB’s Emax 2 circuit breaker the total arc fault clearing time is less than 50ms.

Datasheet Link:

ABB AO810V2 3BSE038415R1.pdf
