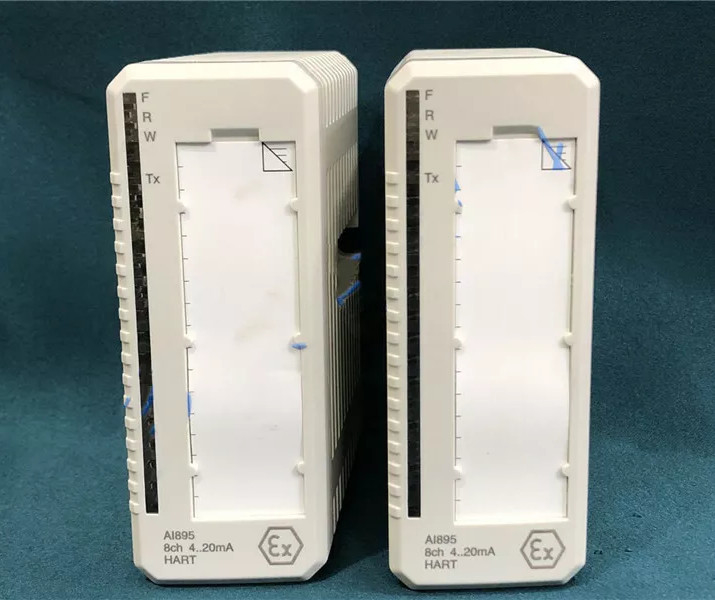

ABB AI895 3BSC690086R1 Analog Input Module S800 8 Channels I/O Module

ABB AI895 3BSC690086R1 Analog Input Module S800 8 Channels I/O Module

Product Details:

Description:

The AI895 Analog Input Module can directly interface 2-wire transmitters and with a particular connection it can also interface 4-wire transmitters without losing the HART capability. The AI895 Analog Input Module has 8 channels. The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices.

Each channel can power and monitor a two-wire process transmitter and HART communication. The input voltage drop of the current input is typically 3 V, PTC included. The transmitter supply for each channel is able to provide at least 15 V at a 20 mA loop current to power Ex certified process transmitters and is limited to 23 mA in overload conditions.

The ABB AI895 is an Analog Input Module capable of interfacing with 2-wire and, under certain conditions, 4-wire transmitters while maintaining HART communication capabilities. Designed for use in hazardous areas,it features Intrinsic Safety protection on each of its 8 channels. The AI895 Analog Input Module can directly interface 2-wire transmitters and with a particular connection it can also interface 4-wire transmitters without losing the HART capability. The AI895 Analog Input Module has 8 channels.

The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices. Each channel can power and monitor a two-wire process transmitter and HART communication. The input voltage drop of the current input is typically 3 V, PTC included. The transmitter supply for each channel is able to provide at least 15 V at a 20 mA loop current to power Ex certified process transmitters and is limited to 23 mA in overload conditions.

ABB S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with the parent controller via industry-standard fieldbus technology and can therefore be used with a wide range of process controllers from ABB and other vendors. ABB System 800xA is not only a DCS (distributed control system), it is also an electrical control system, a safety system and a collaboration enabler that improves engineering efficiency, operator performance and asset utilization.

The ABB AI895 3BSC690086R1 Analog Input Module stands as a high-quality and cost-effective solution for industrial applications. It arrives in its original packaging, guaranteeing authenticity and reliability. The module precisely measures analog inputs, ensuring accurate data acquisition. It allows customization for specific needs through configurable input ranges and channel options. The module rapidly samples data, facilitating real-time acquisition and analysis. It consistently delivers reliable performance even in demanding industrial environments.

Datasheet Link:

ABB AI895 3BSC690086R1.pdf
