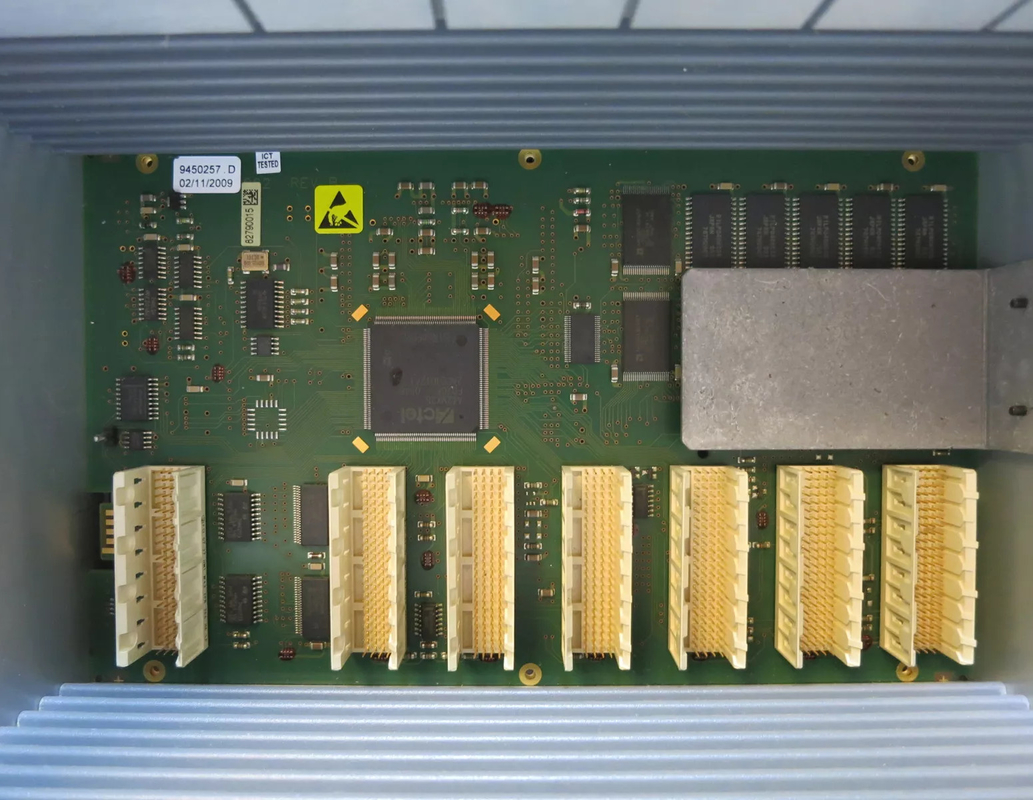

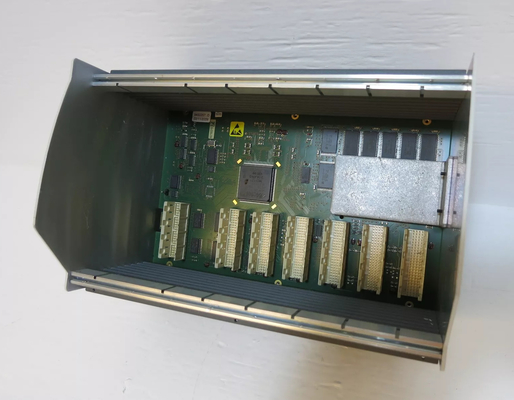

ABB PM802F 3BDH000002R1 AC800F Base Unit Freelance Field Controller 800 CPU PLC

ABB PM802F 3BDH000002R1 AC800F Base Unit Freelance Field Controller 800 CPU PLC

Product Details:

Description:

The PM802F is a scalable control system designed by ABB, part of the Freelance 2000 series. This advanced system features a super scalar RISC microprocessor capable of up to 150 MIPS, ensuring high-performance processing for various industrial applications. The quality of Freelance 800F is also reflected in the robust hardware, which is immune to electromagnetic interference and bears the CE, UL and GL Mark as a quality symbol for all its components.

PM802F is part of ABB Freelance control system AC 800Fprocessor modules. As a basic unit, PF802F scans signals from the fieldbus lines via the corresponding fieldbus modules, processes these signals according the application programs installed by the user and sends appropriate signals to the fieldbus actuators via the fieldbus modules.

Controller redundancy can be achieved by using two AC 800F. To ensure quick and smooth takeover in milliseconds by the secondary AC 800F in case the primary AC 800F fails, a dedicated redundancy communications link through the second Ethernet module makes sure that both AC 800F are always synchronized. All inputs and outputs are designed to support redundant operation.

PM802F is designed as ABB Freelance control system AC 800Fprocessor modules. As a basic unit, PF802F scans signals from the fieldbus lines via the corresponding fieldbus modules, processes these signals according the application programs installed by the user and sends appropriate signals to the fieldbus actuators via the fieldbus modules.

The S800 I/O is distributed as modular I/O that communicates with numerous controllers over Advant Fieldbus 100 (AF100), PROFIBUS-DP, or directly. The S800 I/O provides easy installation of the I/O modules and process cabling. It is highly modularized and flexible so that I/O modules can be combined to suit many applications. The S800 I/O can be mounted in many configurations to fit most requirements.

Datasheet Link:

ABB PM802F 3BDH000002R1.pdf
