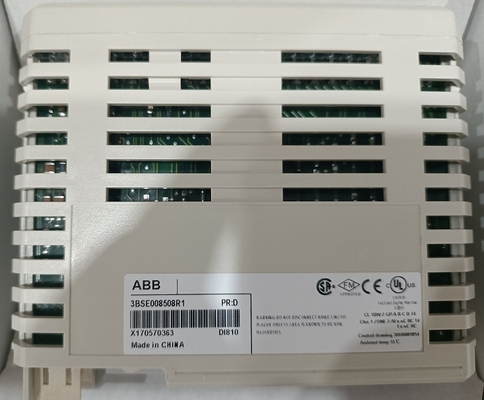

ABB DI810 3BSE008508R1 S800 I/O Digital Input Module 24V 16 Channels Module

ABB DI810 3BSE008508R1 S800 I/O Digital Input Module 24V 16 Channels Module

Product Details:

Description:

The ABB DI810 3BSE008508R1 module has 16 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.

This Digital Input Module features 16 digital inputs and the input voltage range is 18 to 30 Vdc. The inputs are divided into two isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection, input state indication LEDs and an optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears with the error signal can be read via the ModuleBus.

DI810 3BSE008508R1 digital input module has 16 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.

The ABB Dl810 Digital Input Module is designed for industrial automation applications and features 16 channels for 24V DC digital inputs with current sinking capability. The module is structured into two isolated groups of eight channels each, with voltage supervision inputs for each group. This setup ensures robust performance and protection, making it a reliable choice for monitoring and control tasks in various industrial environments.

The ABB Dl810 Digital Input Module provides a reliable and efficient solution for digital input monitoring in industrial automation systems, featuring robust protection, configurable filtering, and clear status indicators for optimal performance and ease of use. Each input channel includes current limiting components,EMC protection, an input state LED indicator, and optical isolation from the ModuleBus.

Datasheet Link:

ABB DI810 3BSE008508R1.pdf
