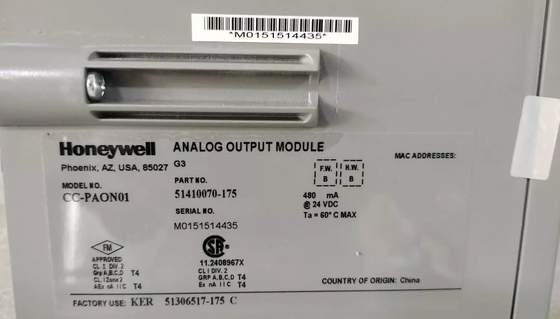

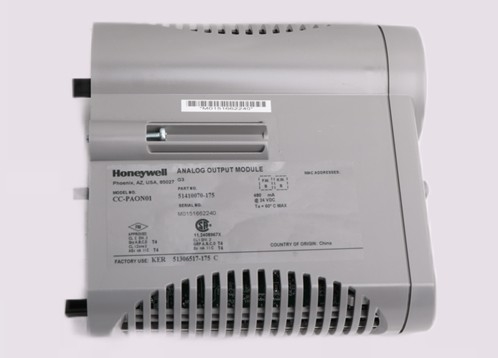

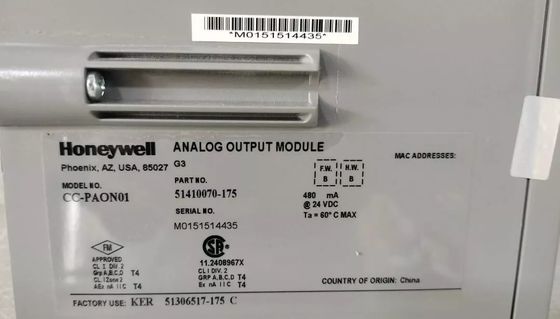

CC-PAON01 Honeywell Analog Output Module For C300 Controller PLC Module

CC-PAON01 Honeywell Analog Output Module For C300 Controller PLC Module

Product Details:

Additional Information:

Description:

The CC-PAON01 is an analog output module for the C300 controller in Honeywell's Experion Process Knowledge System (PKS) distributed control system (DCS). It's used to convert digital signals from the C300 controller into analog voltage or current signals for controlling continuous process variables in industrial applications.

Honeywell’s C300 Controller provides powerful and robust control for the distributed control system (DCS). The C300 is a node in operating Honeywell’s field-proven deterministic Control Execution Environment (CEE) core software. The CEE software provides a superior control execution and scheduling environment. Control strategies for each controller node are configured and loaded through a common Control Builder, an easy and intuitive engineering tool. In addition to a standard and robust library of pre-built function blocks and algorithms, the C300 Controller also supports Custom Algorithm Blocks (CABs). Custom Algorithm Blocks are similar in purpose and structure to the standard function blocks that are distributed with Control Builder. However, CABs have user-defined algorithms and data structures, allowing custom tailored strategies to be developed to specific requirements. The C300 controller shares its hardware design with the Series 8 I/O, offering an innovative design that reduces footprint and installation and maintenance costs. The C300 controller module is mounted on the C300 Input Output Termination Assembly (IOTA). The C300 IOTA contains only passive devices such as FTE address switches. Figure 1 below depicts the IOTA components.

The Honeywell CC-PAON01 is an analog output module that is part of the Honeywell Experion Process Knowledge System (PKSTM). It is used to convert a process variable, such as temperature or pressure, into an analog signal that can be used by other devices in the control system.

The CC-PAON01 typically includes multiple output channels, allowing for simultaneous control of various actuators, such as valves, motors, and other devices. It supports different output signal types, including voltage (0-10V) and current (4-20mA), making it suitable for a wide range of applications. The module is engineered for high accuracy and stability, ensuring that the output signals reflect the desired control parameters with minimal deviation. Designed for real-time operation, it enables quick response times essential for dynamic industrial processes.
