IPC704 244-704-000-511 Signal Conditioner For Sensors Using Standard Piezoelectric Materials
Product Details:
| Brand Name |
Others |
| Model |
IPC704 |
| Ordering information |
244-704-000-511 |
| Condition |
New |
| Gross Weight/Shipping Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin/Original Country |
China |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Description:
The IPC704 signal conditioner converts the chargebased signal from a piezoelectric-based transducer into a current or a voltage signal. This current or voltage signal is transmitted to the processing electronics via a standard 2-wire or 3-wire transmission cable.
The current modulation technique allows transmission over a distance of up to 1 km. A GSI galvanic separation unit is required for this configuration.

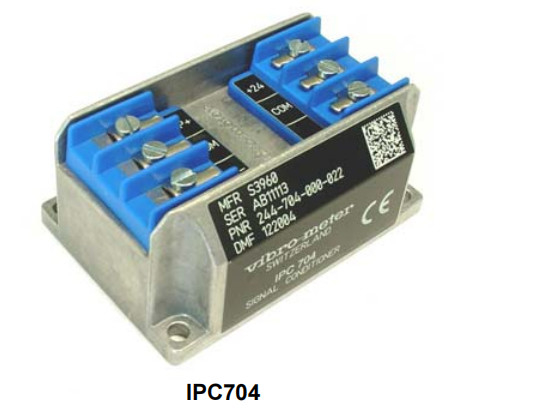

The electronic circuitry of the IPC704 signal conditioner is incorporated into a moulded aluminium enclosure. The signal conditioner has configurable high-pass and low-pass filters and an optional integrator to give a velocity output. Furthermore, RFI filters protect the input and output against radio frequency interference and other electromagnetic influences.
A range of installation options are available for the IPC704 signal conditioner, including:
(1) A polyester enclosure providing environmental protection against dust, oil and water jets.
(2) A mounting adaptor allowing the IPC704 signal conditioner to be mounted on a DIN rail.
Two versions of the IPC704 signal conditioner are available:
(1) An IPC704 for sensors using standard piezoelectric materials, for example, CAxxx, CP10x and CP2xx (ordering number 244-704-000-042-...).
(2) An IPC704 for sensors using GaPO4 piezoelectric material, for example, CP50x (ordering number 244-704-000-511-...).
Features
(1) For CAxxx piezoelectric accelerometers and CPxxx dynamic pressure sensors
(2) Configurable high-pass and low-pass filters
(3) Frequency range: 0.5 Hz to 20 kHz
(4) Optional integrator to produce a velocity output
(5) Optional 2-wire current or 3-wire voltage transmission

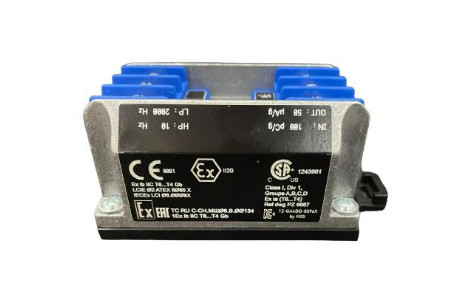

(6) Certified for use in potentially explosive atmospheres
(7) A range of installation options are available
