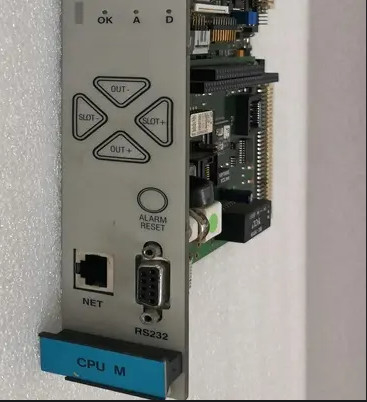

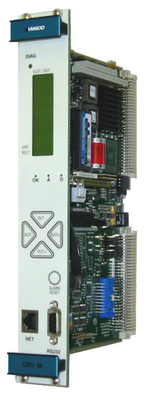

CPUM 200-595-067-114 I/O Card Rack Controller And Communications Interface Card

CPUM 200-595-067-114 I/O Card Rack Controller and Communications Interface Card

Product Details:

Additional Information:

Description:

The CPUM and IOCN modular CPU card and input/output card is a rack controller and communications interface card pair that acts as a system controller and data communications gateway for a rack-based machinery protection system (MPS) and/or condition monitoring system (CMS) from product line.

Different monitoring cards are available for machinery protection, condition monitoring and/or combustion monitoring applications. For example, machinery protection cards such as the MPC4/IOC4T machinery protection card pair and AMC8/IOC8T analogue monitoring card pair, and condition monitoring cards such as the XMV16/XIO16T monitoring card pair for vibration and XMC16/XIO16T monitoring card pair for combustion.

Optionally, a CPUM card can be fitted with a serial communications module (in addition to the CPU module) in order to support additional serial connections. This is the serial redundant version of the CPUM card.

The CPUM module’s primary Ethernet and serial connections are available via connectors on the front panel of the CPUM. However, if the associated IOCN card is used, the primary Ethernet connection can be routed to a connector on the front panel of the IOCN (instead of the connector on the CPUM ). When the associated IOCN card is used, the secondary Ethernet and serial connections are available via connect
