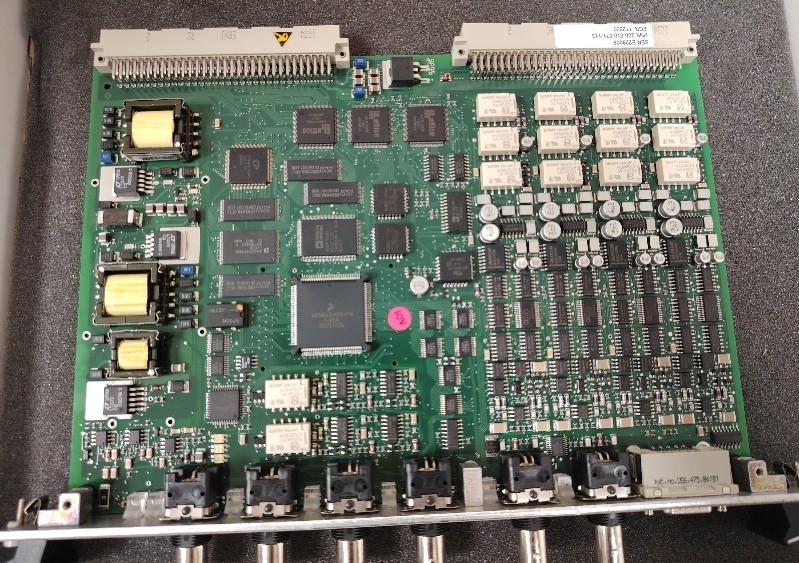

MPC4 200-510-150-031 Machinery Protection Card Up To Two Speed Inputs Simultaneously

MPC4 200-510-150-031​ Machinery Protection Card Up to Two Speed Inputs Simultaneously

Product Details:

Additional Information:

Description:

Digital processing includes digital filtering, integration or differentiation (ifrequired),rectification (RMS, mean value, true peak or true peak-to-peak), order tracking (amplitude and phase) and measurement of the sensor-target gap.

For further information on the use of MPC4/IOC4T card pairs in general, refer to the machinery protection system hardware manual and the MPSx software manuals. For information on the use of MPC4/ IOC4T card pairs in functional safety contexts, refer to the refer to the functional safety manual.

A digital output is available internally (on the corresponding IOC4T input/output card) for each alarm level. These alarm signals can drive four local relays on the IOC4T card and/or can be routed using the rack’s Raw bus or Open Collector (OC) bus to drive relays on optional relay cards such as the RLC16 or IRC4.

The dynamic signal inputs are fully programmable and can accept signals representing acceleration, velocity and displacement (proximity), among others. On-board multichannel processing allows measurement of various physical parameters, including relative and absolute vibration, Smax, eccentricity, thrust position, absolute and differential housing expansion, displacement and dynamic pressure.

An LED indicator on the MPC4 front panel indicates whether a processing or hardware error has occurred. Six additional LEDs (one per input channel) indicate whether the OK System has detected a fault and whether an alarm has occurred on the channel.

The MPC4 card is available in three versions: a “standard” version, a “separate circuits” version and a “safety” (SIL) version, all of which function as a card pair usingacorresponding IOC4T input/ output card.

When used as a card pair with an IOC4T input/output card, the MPC4 is highly suitable for machinery monitoring and protection in a wide range of industrial applications.
