CPUM 209-595-067-121 CPU Card In Stock ESD System Card

CPUM 209-595-067-121​ CPU Card In Stock ESD System Card

Product Details:

Description:

CPUM/IOCN card pair and racks The CPUM/IOCN card pair is used with a ABE04x system rack and a CPUM card can be used either alone or with an associated IOCN card as a card pair, depending on the application/system requirements.

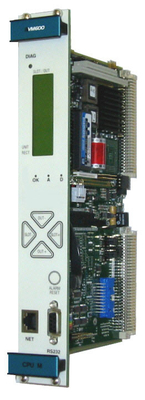

The CPUM is a double-width card that occupies two rack slots (card positions) and the IOCN is a single-width card that occupies a single slot. The CPUM is installed in the front of the rack (slots 0 and 1) and an associated IOCN is installed in the rear of the rack in the slot directly behind the CPUM (slot 0). Each card connects directly to the rack’s backplane using two connectors.

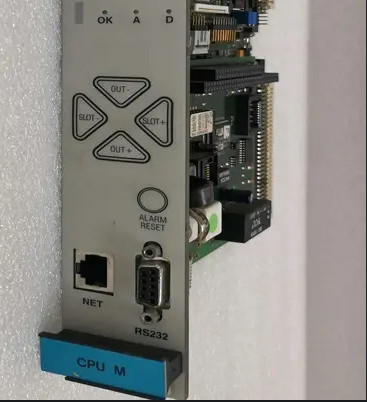

The CPUM front panel features an LCD display that shows information for the CPUM itself and for protection cards in a system rack. The SLOT and OUT (output) keys on the CPUM front panel are used to select which signal to display.

As a fieldbus communications interface for a monitoring system, the CPUM communicates with MPC4 and AMC8 cards via the VME bus and with XMx16/XIO16T card pairs via an Ethernet link in order to obtain measurement data and then share this information with third-party systems such as a DCS or PLC.

The CPUM supports features that can be used to limit the functionality of a system rack’s machinery protection system (MPS) that is available via the system Ethernet connections of a CPUM/IOCN card pair. Enabling VM600 MPS rack (CPUM) security helps to reduce the possibility of interference in the machinery protection function of the rack itself and in the machinery being monitored. Accordingly, CPUM rack security makes it easier for operators to comply with international security/critical infrastructure regulations.

The modular, highly versatile design of the CPUM means that all VM system rack configuration, display and communications interfacing can be performed from a single card in a “networked” rack. The CPUM card acts as a “rack controller” and allows an Ethernet link to be established between the rack and a computer running one of the VM600 MPSx software packages (MPS1 or MPS2).
