IOC4T 200-560-000-019 I/O Card Acts As A Signal Interface Machinery Protection and/or Basic Condition Monitoring
Product Details:
| Brand Name |
Others |
| Model |
IOC4T |
| Ordering information |
200-560-000-019 |
| Condition |
New |
| Gross Weight/Shipping Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin/Original Country |
China |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Module type |
PFM-541I or equivalent |
| Processor type |
AMD Geode™ LX800 |
| Processor Speed |
500 MHz |
| Memory |
256 MB DRAM |
| Power supply to module (input) |
5 VDC, |
| Operating system |
QNX |
Description:

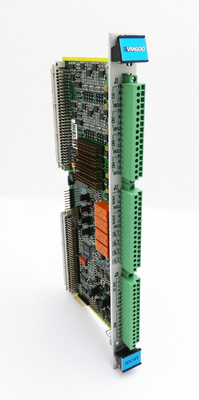

The IOC4T input /output card acts as a signal interface for the series MPC4 machinery protection card, from product line. It is installed in the rear of a rack and connects directly to the rack backplane via two connectors.
The front panel of the IOC4T contains terminal strip connectors for wiring to the transmission cables coming from measurement chains (sensors and /or signal conditioners). The screw-terminal connectors are also used to input all signals from and output all signals to any external control system.
The IOC4T card protects all inputs and outputs against electromagnetic interference (EMI) and signal surges and also meets electromagnetic compatibility (EMC) standards.
The IOC4T contains four local relays that can be attributed to any specific alarm signals under software control. For example, these may be used to signal an MPC4 fault or a problem detected by a common alarm (Sensor OK, Alarm and Danger) in a typical application.
For further information on the use of MPC4/IOC4T card pairs in general, refer to the machinery protection system (MPS) hardware manual and the software manuals. For information on the use of MPC4/IOC4T card pairs in functional safety contexts, refer to the refer to the functional safety manual.
Order Information
Versions of the IOC4T card are available with a conformal coating (“varnish”) applied to the circuitry of the card for additional environmental protection against chemicals, dust, moisture and temperature extremes.
In 2017, the MPC4 / IOC4T machinery protection card pairs were improved to be RoHS compliant an provide a reduced buffered dynamic signal output impedance, which required a redesign of the underlying buffered “raw” dynamic signal output circuitry. Accordingly, the different versions of the MPC4/IOC4T machinery protection card pairs in use are:
• Later versions of the MPC4 (PNRs 200-510-SSS-115, 200-510-SSS-214 and 200-510-SSS-313 or later) and IOC4T (PNR 200-560-000-114 and 200-560-000-212 or later), which are RoHS compliant and have an output impedance of 50 Ω.
• Earlier versions of the IOC4T (PNRs 200-510-SSS-114, 200-510-SSS-213 and 200-510-SSS-312 or earlier) and IOC4T (PNR 200-560-000-113 and 200-560-000-211 or earlier), which are not RoHS compliant and have an output impedance of 2000 Ω.
“SSS” represents the firmware (embedded software) version and “Hh” the hardware version. “H” increments are for major modifications that can affect product interchangeability. “h” increments are for minor modifications that have no effect on interchangeability.
