Product Details:

Description:

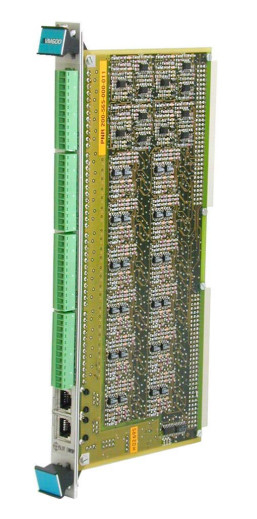

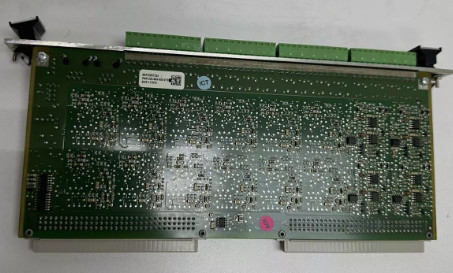

The IOC 16T Input / Output Card acts as a signal interface for the VM 600 series CMC 16 (Condition Monitoring Card). It is installed in the rear of the ABE 04X rack and connects directly to the rack backplane via two connectors.

Each IOC 16T is associated with a specific CMC 16 and is mounted directly behind it in the rack. The IOC 16T contains a terminal strip to connect the transmission cables coming from transducers and conditioners. However, if these signals are already available via the VM 600 backplane ‘Raw Bus’ and ‘Tacho Bus’ lines, then these can be selected directly without any need for additional wiring.

The card protects all inputs and outputs against electromagnetic interference (EMI) and signal surges and also meets EMC (electromagnetic compatibility)standards.

Tacho inputs, signals from accelerometers, velocimeters and proximity probes, or any dynamic or quasi-static signals are conditioned by dedicated circuitry which perform tasks such as pulse shaping, level adjustment, AC/DC selection and cold junction compensation. Micro-switches are provided to facilitate selection of conditioner and access method (i.e. screw terminals or backplane). The IOC 16T also provides isolation from the plant and ensures feedthrough of inputs to the CMC 16.

Two methods of communication are supported; VMEbus connection to a CPU M module in slot 0 of the VM 600 rack and subsequent Ethernet link, or direct isolated multi-drop RS-485 serial connection via RJ connectors provided on the IOC 16T.

Features

• 16 channel interface card for CMC 16 (Condition Monitoring Card)
• Screw terminal strip (48 terminals)
• Ensures EMI protection for all inputs and outputs
• Provides signal conditioning for all inputs
• First 4 channels can be selected as tacho or dynamic inputs (i.e. vibration)
• Last 12 channels can be selected as dynamic or process inputs
• Channel 16 can be selected as dynamic, process or cold junction compensation input for thermocouples
• Inputs can be routed via VM 600 Raw Bus and Tacho Bus
• On-board isolated Serial RS-485 communication option
• Live insertion / removal of cardsOrder Information
